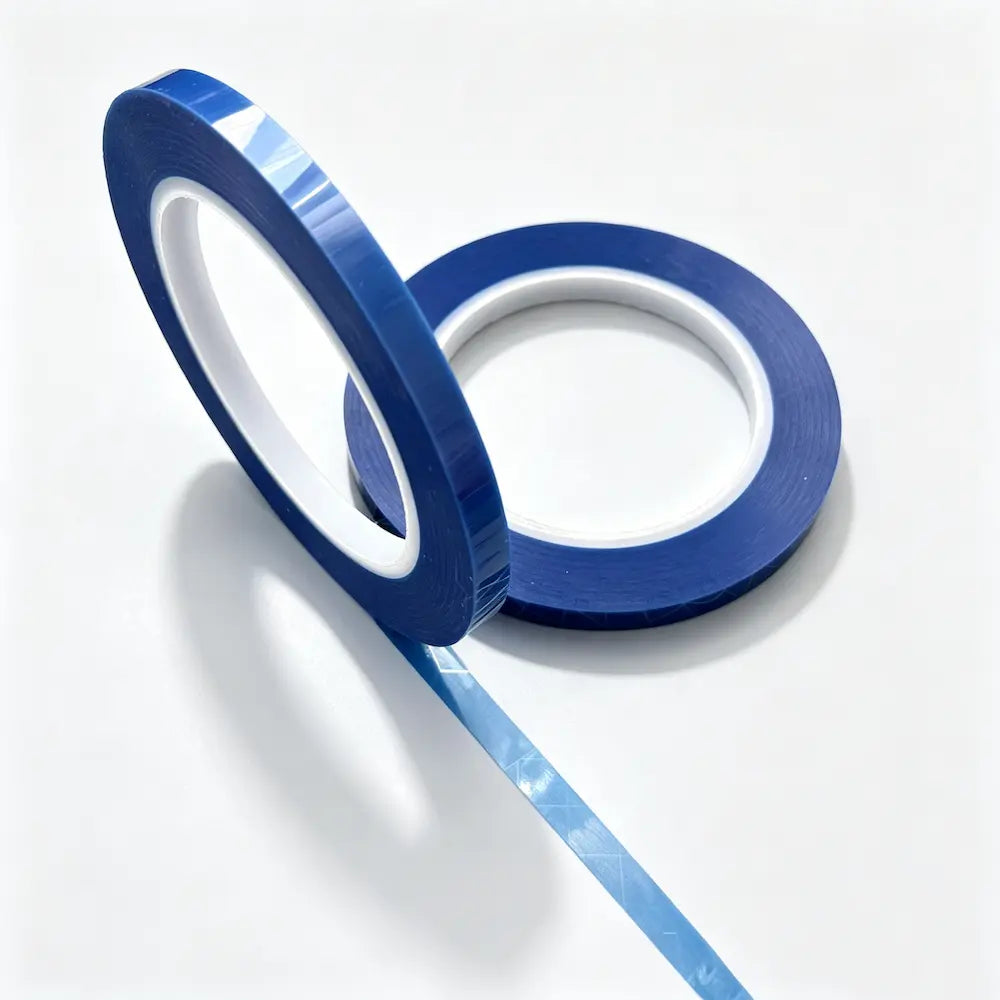

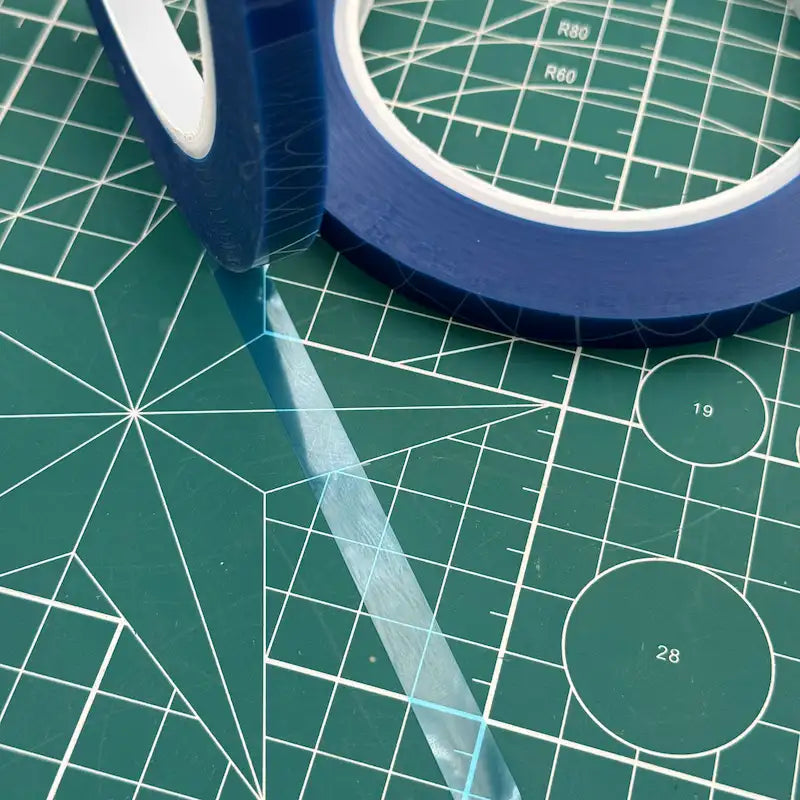

High-Tack Blue Polyester Tape | High Opacity Light-Blocking PET Film
High-Tack Blue Polyester Tape | High Opacity Light-Blocking PET Film
High-Tack Blue Polyester Film Tape | High Opacity Light-Blocking Grade
Engineered with a premium blue-tinted polyester (PET) base film and a high-adhesion organic silicone pressure-sensitive adhesive. Combines exceptional light-shielding opacity, aggressive instant tack, and 180°C continuous heat resistance for display modules, battery packs, and industrial web splicing.
Precision Light Control & Heavy-Duty Industrial Adhesion
Standard clear or light-colored polyester tapes allow significant ambient light bleed, which compromises performance in optoelectronic display assemblies and sensor housings. Our High-Tack Blue Polyester Tape solves this by using a high-density blue original PET film carrier that delivers high optical opacity (>99% shading effect) across the visible spectrum.
Formulated with an ultra-aggressive silicone adhesive system, this tape bonds instantly to low-surface-energy (LSE) materials, metal chassis, and plastic housings. It withstands continuous operational temperatures up to 180°C and resists chemical exposure, acid, and moisture without lifting, flagging, or leaving sticky silicone residue upon removal.
Technical Data Sheet (TDS) & Metric Specifications
| Performance Property | Metric Specification Value | Test Method Standard |
|---|---|---|
| Carrier Base Film | Original Blue Polyester (PET) Film | Factory Standard |
| Adhesive System | High-Tack Cross-linked Silicone Adhesive | Factory Standard |
| Total Thickness Options | 0.05 mm (50 μm) / 0.065 mm / 0.08 mm | ASTM D-3652 |
| 180° Peel Adhesion (Stainless Steel) | ≥ 12 N / 25 mm (High Instant Tack) | ASTM D-3330 / PSTC-1 |
| Light Blocking Rate (Opacity) | > 99% Visible Light Shielding | Spectrophotometer Optical Test |
| Temperature Resistance Limit | Continuous 180°C (356°F) / Short Term 200°C | Thermal Chamber Test |
| Tensile Strength | ≥ 110 N / 25 mm | ASTM D-3759 |
| Elongation at Break | 50% – 80% | ASTM D-3759 |
Key Industrial & Electronics Applications
🖥️ Display & Backlight Unit (BLU) Masking
Prevents side light leakage around LED backlight borders, optical frame edges, and OLED panel bezels.
🔋 EV Battery Pack Insulation & Fixation
Wraps battery cells and flexible printed circuit harnesses requiring high dielectric insulation and color identification.
🔄 High-Speed Siliconized Film Splicing
Provides ultra-high tack for flying splices on silicone release liners, fluorosilicone films, and web converting lines.
🛡️ High-Temperature Powder Coating Masking
Masks critical surface areas on metallic parts during bake cycles without edge lifting or adhesive residue.
Need Custom Roll Slitting, Die-Cut Parts, or Bulk Quotations?
Contact our technical adhesive specialists for custom width slitting (from 3mm to 1280mm), precision die-cut shapes, and free test sample rolls.
💬 Direct WhatsApp Factory Sales (+86 13798812128)FAQ
Q: What makes "Original Blue PET" different from surface-dyed blue polyester tape?
A: Original blue PET uses masterbatch blue pigment incorporated during plastic resin extrusion. This ensures completely uniform color density and superior light-blocking opacity without dye leaching or fading under heat.
Q: Does the high-tack silicone adhesive bond well to low-surface-energy (LSE) materials?
A: Yes! Silicone adhesive natively offers outstanding adhesion to challenging substrates, including silicone-treated release liners, PTFE, fluoropolymers, and textured plastic housings.
Q: Will this tape leave adhesive residue when removed after high-temperature baking?
A: No. The silicone adhesive is thermally cross-linked to the blue PET backing, ensuring clean 100% residue-free removal even after exposure to 180°C heat cycles for extended periods.
Q: Can you supply precut die-cut shapes or specific narrow widths for display assembly?
A: Yes, we provide precision roll slitting down to 3mm widths as well as custom die-cut parts on release liners according to your CAD engineering drawings.
