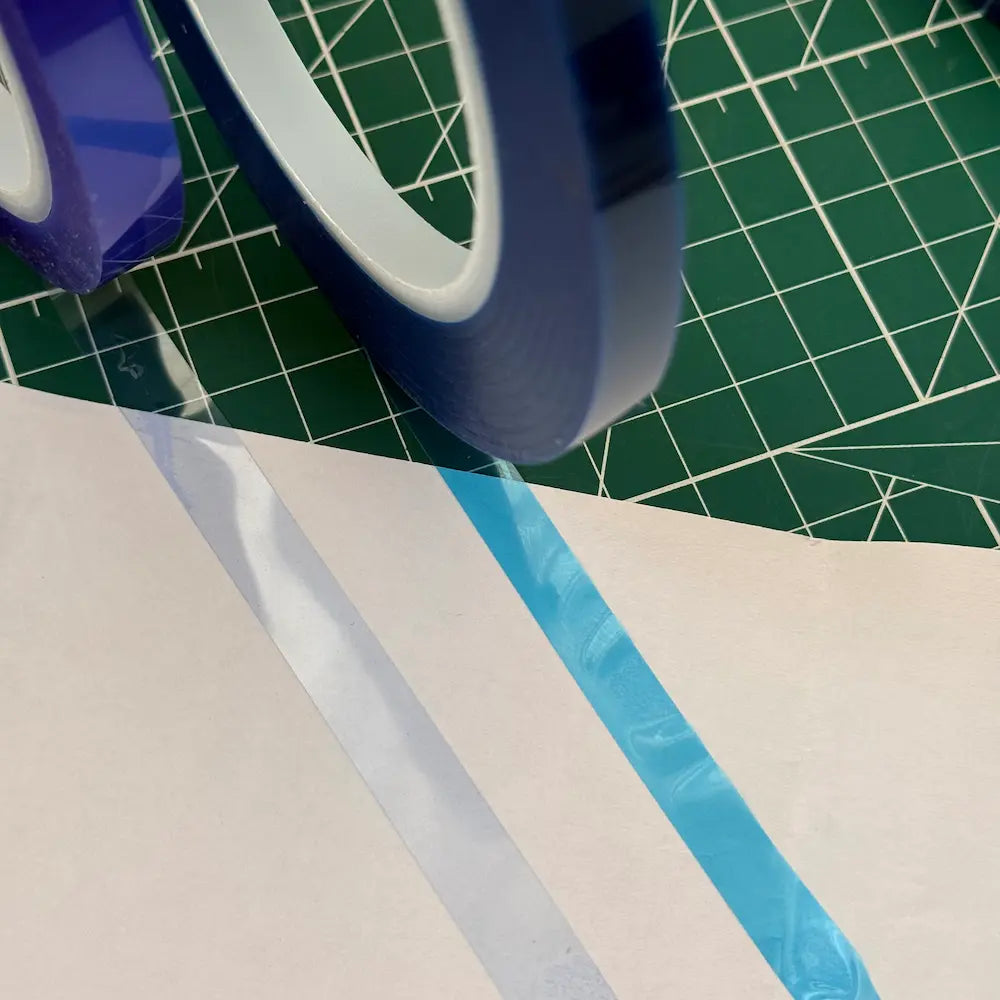

0.05mm Blue Opaque PET Tape Guide: High-Tack Light Blocking & Industrial Masking
By Martin Chan | Overseas Materials Engineering Lead at Hong Kong Huilink Trading Co., Limited
The Challenge of Light Leakage & Edge Flagging in Precision Electronics
In LCD backlight modules, OLED displays, and high-density PCB assemblies, insufficient tape opacity causes optical light bleed across narrow bezel borders. Furthermore, standard low-tack tapes (<500gf) suffer from edge lifting (flagging) when exposed to ambient heat or curved plastic housings. Specifying a precision 0.05mm total thickness Blue Opaque PET tape with 900–1000gf high tack solves both problems simultaneously.
Manufactured using an ultra-thin 0.025mm premium blue-pigmented polyester (PET) carrier film paired with a high-cohesion pressure-sensitive adhesive layer, this tape combines high opacity, thin-profile conformability, and aggressive bond strength.
1. Technical Specification Standard (0.05mm Blue Opaque PET)
At Hong Kong Huilink Trading Co., Limited, our Dongguan plant enforces strict physical property verification for high-tack blue polyester tapes:
| Technical Parameter | Specification Value | Testing Method / Standard |
|---|---|---|
| Backing Film Material & Color | Blue Opaque Polyester (PET) Film | Visual Optical Density Inspection |
| Backing Film Thickness | 0.025 ± 0.001 mm (1.0 mil) | GB/T 13542.2-2009 |
| Total Tape Thickness | 0.050 ± 0.002 mm (2.0 mil) | GB/T 7125-2014 |
| 180° Peel Adhesion to Steel | 900 ～ 1000 gf / 25mm | GB/T 2792-2014 |
| Tensile Strength | ≥ 130 MPa | GB/T 30776-2014 |
| Elongation at Break | ≤ 90 % | GB/T 30776-2014 |
| Light Blocking / Shading Rating | High Opaque Barrier (Zero Transmission) | Optical Densitometer Test |
| Heat Endurance | 150°C for 30 minutes (Pass, Zero Residue) | Thermal Chamber Bake Test |
2. Three Primary Industrial Application Scenarios
A. LCD & OLED Display Module Light Blocking
Applied along the perimeter edges of smartphone, tablet, and automotive display backlight modules. The deep blue opaque pigment stops LED backlight bleed while the 0.05mm total profile keeps bezel assemblies compact.
B. Electronic Component High-Tack Masking & Fixing
Provides extreme 900–1000gf peel adhesion to hold heavy electronic components, wire harnesses, and lithium battery cells securely in place without lifting during high-speed automated assembly or transportation vibration.
C. PCB Surface Insulation & Wave Solder Masking
Protects designated PCB areas from solder flux splatter and airborne dust. The tough 0.025mm PET backing resists chemical solvents while stripping cleanly post-process.
Request Free Sample Rolls of 0.05mm Blue Opaque PET Tape
We supply free sample rolls (slit to your requested width from 5mm to 1060mm x 33m/66m) with complete TDS, MSDS, and RoHS test reports.
Request Free Sample Pack via WhatsApp3. Why Global Converters Source Blue PET Tape from Huilink
Sourcing directly from Hong Kong Huilink Trading Co., Limited guarantees precise manufacturing tolerances and commercial advantages:
- Precision Slitting Tolerance: Master jumbo rolls (1060mm wide) slit with razor-sharp tolerances (±0.1mm) to fit automated tape dispensing machines.
- Controlled 900–1000gf Adhesion: High-crosslink adhesive formulation prevents adhesive transfer or ghosting when peeled off glass or stainless steel substrates.
- Complete Export Compliance: Full RoHS, REACH, and UL compliance reports provided for seamless customs clearance under EXW, FOB, FCA, or CIF terms.
Get Wholesale Factory Quotes Direct from Dongguan Plant
Hong Kong Huilink Trading Co., Limited provides direct factory pricing, master roll slitting, custom die-cut sheet conversion, and fast export logistics.
