50u Red Polyester Tape High Temp
50u Red Polyester Tape High Temp

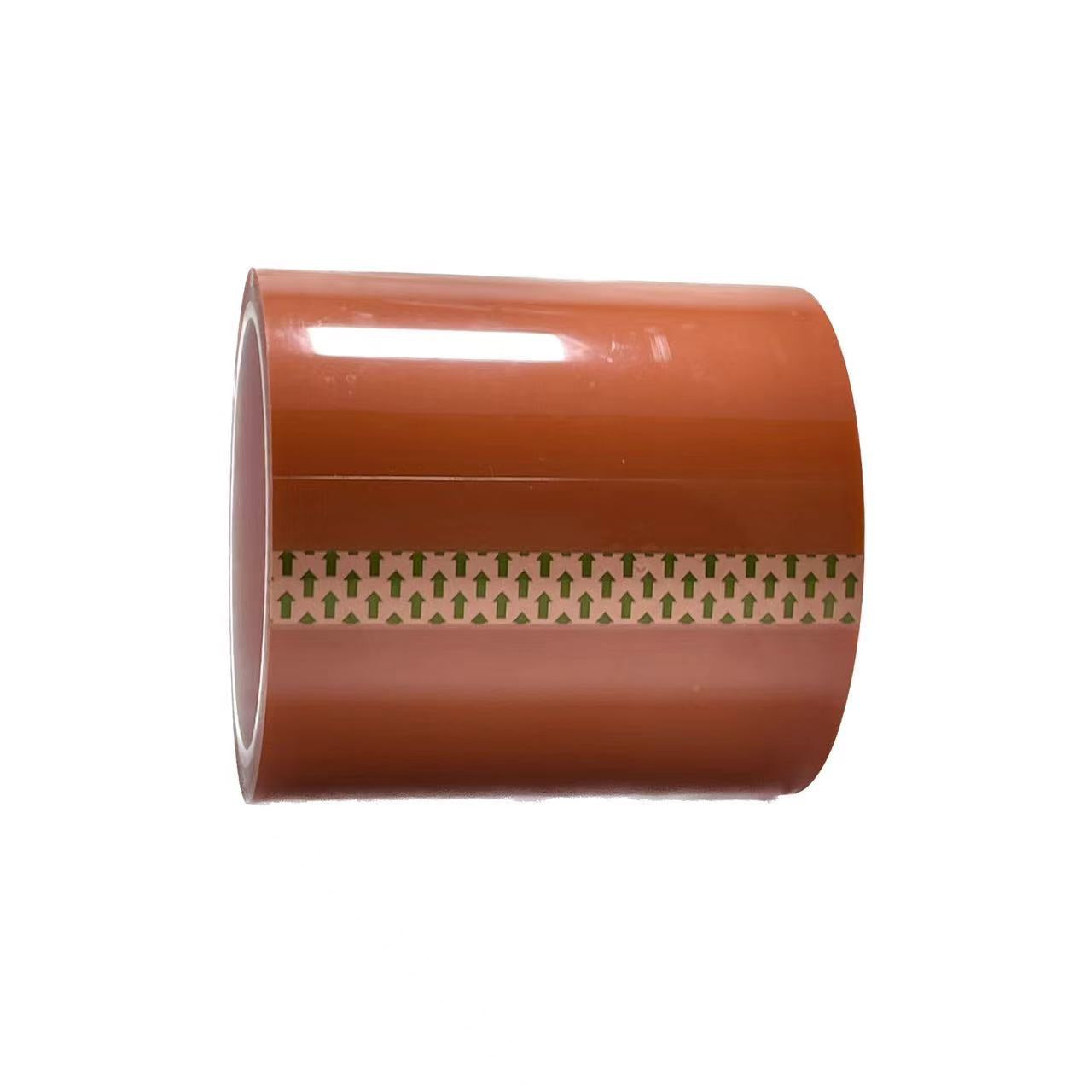

Industrial High Temperature Red Polyester (PET) Tape
High-visibility crimson PET carrier with silicone pressure-sensitive adhesive. Engineered for rapid visual inspection in powder coating, electrocoating, and silicone release liner splicing.
🔴 High Visual Contrast
The bright crimson red backing makes alignment checking effortless on dark metal substrates, automated optical inspection (AOI) lines, and complex die-cuts.
🔥 220°C Thermal Peak
Formulated to withstand bake oven cycles up to 220°C (428°F) for 30 minutes without shrinking, lifting edges, or thermal breakdown.
🛡️ Zero Residue Guarantee
Special cross-linked silicone adhesive peels off cleanly in one piece after thermal processing, eliminating costly manual cleanup or solvent wiping.
| Specification Parameter | Metric Value | Testing Standard |
|---|---|---|
| Tape Structure | Red PET Film + Silicone Adhesive | Factory Standard |
| Standard Total Thickness | 0.05 mm (50 μm) ±0.002 mm | ASTM D-3652 |
| Backing Film Thickness | 0.025 mm Red Polyester Film | ASTM D-3652 |
| Adhesion to Steel (180°) | ≥ 6.5 N / 25mm | ASTM D-3330 |
| Tensile Strength | ≥ 110 N / 25mm | ASTM D-3759 |
| Elongation at Break | ≥ 50 % | ASTM D-3759 |
| Temperature Range | -40°C to +220°C (-40°F to +428°F) | UL-510 Standard |
| Dielectric Breakdown | 4,000 Volts | ASTM D-149 |
Our Red High Temp Polyester Tape is widely preferred over traditional green or clear PET tapes when high-contrast masking or splicing visibility is paramount. In high-speed automated web handling, the red film enables reliable sensor detection for silicone-coated paper and plastic film splicing.
Need Factory Direct Slitting or Custom Die-Cuts?
Contact our B2B sales team for technical datasheets, free sample rolls, and direct bulk pricing.
💬 Direct WhatsApp Consultation (+86 13798812128)Q: Why choose Red High Temp Polyester Tape instead of Green PET tape?
A: While both green and red PET tapes offer similar temperature resistance up to 220°C, red tape provides significantly higher contrast against silver, aluminum, and stainless steel surfaces. This makes it easier for operators to inspect masked areas and ensures no tape is left behind after curing.
Q: Is this red polyester tape effective for splicing silicone-coated materials?
A: Yes. The specialized silicone pressure-sensitive adhesive bonds exceptionally well to siliconised release papers and poly-coated liners, making it an industry standard for high-speed web splicing.
Q: Can you supply custom slitting widths and jumbo roll formats?
A: Yes. Master jumbo rolls (980mm width × 66m or 500m length) can be slit down to any custom width starting from 3mm with a precision slitting tolerance of ±0.2mm.
Q: Does the red color bleed or stain surfaces during high-temperature baking?
A: No. The red pigment is integrated into the polyester carrier film layer itself rather than the adhesive. It will not bleed, transfer, or stain coated metals or electronic components during 220°C oven cycles.
