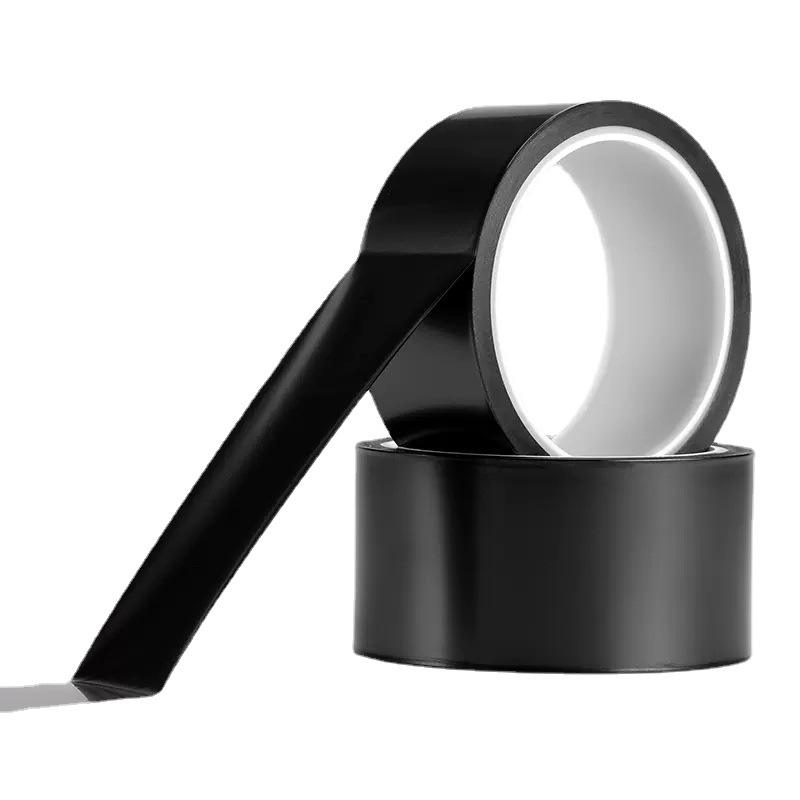

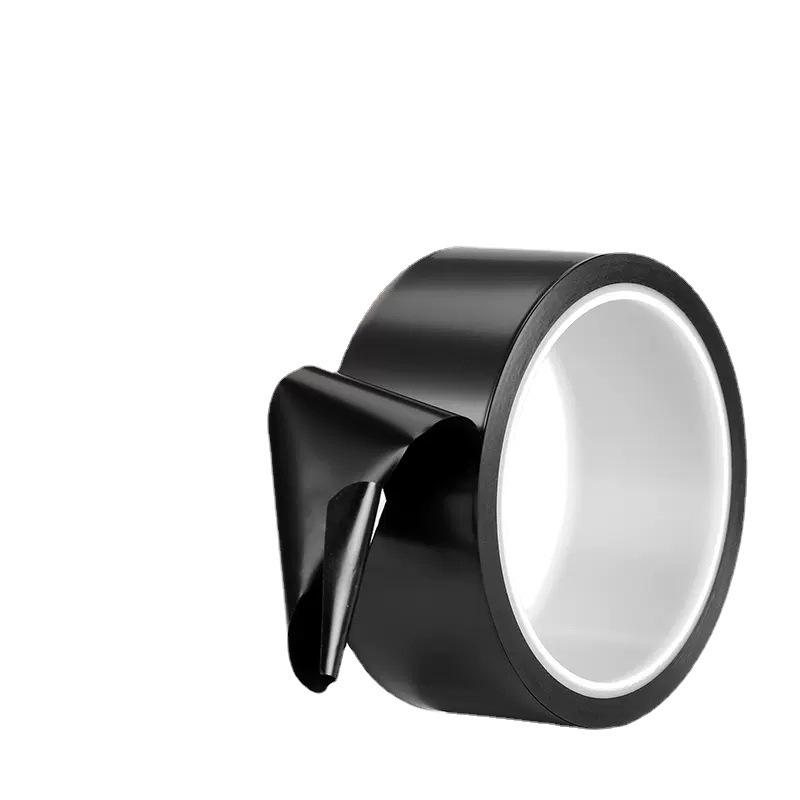

Matt Black Polyimide Tape – Heat Resistant & ESD Safe

Matt Black Polyimide Tape – Heat Resistant & ESD Safe

$2.50 USD
$4.00 USD $2.50 USD
Sale Sold out

🔥 Key Features

Why Engineers Choose Matt Black Polyimide Tape?
✔️ 260°C Heat Proof: Stable in reflow soldering & baking
✔️ ESD Protection: 10⁶~10⁹Ω surface resistance
✔️ Matte Black Finish: Reduces light reflection for optical applications
✔️ Chemical Resistance: Withstands acids/alkalis/electrolytes

✅ Top Applications

  • PCB Manufacturing: Gold finger masking, wave soldering

  • Battery Packing: Terminal insulation, short-circuit prevention

  • Automotive Electronics: ECU module fixing, sensor protection

  • Optical Components: Camera module light shielding

🌟 5 Key Benefits

✔️ Extreme Heat Proof: 500°F continuous use (SGS tested)
✔️ Precision Masking: Laser-cut for complex PCB shapes
✔️ Clean Removal: No residue on delicate circuits
✔️ Tear-Resistant: >100N/25mm tensile strength
✔️ Eco-Friendly: ROHS compliant, halogen-free

💡 Pain Point Solutions

  • “Tape fails in reflow?” → Ours survives 260°C!

  • “Static damages ICs?” → ESD-safe surface resistance!

  • “Sticky residue?” → Peels clean—guaranteed!

• “Matt black polyimide tape for PCB soldering”
• “ESD safe high temp masking tape”
• “No residue Kapton tape for batteries”

Adhesion:Silicone
Color:kapton Bright  Black
Total Thickness (mm):0.060MM
Length (m):33M
Tensile Strength (N/25mm):≥140
Elongation (%):≥40
Breakdown strength (N/25mm):≥150
Voltage resistance (KV):4
Adhesion (N/25mm):≥4.5
Temperature Resistance (ºC):260ºC


Item Name
Single Sided Polyimide Adhesive Tape
Color
Amber,Gold ,Black ,Red ,Green
Brand
Huilink
Type
Heat Transfer Tape
Backing
Silicone
Width
10mm 20mm 30mm 50mm  Other Size can be custom
Length
33m  Custom can be available
Application temperature
260ºC--280ºC
Adhesion To Steel(N/25mm)
2.5-10(N/25mm)
Tensile Strength(kg/25mm)
10-40(kg/25mm)
Elongation at break(%)
25%-85%
