Green PET Die-Cut Tape 230°C | Pre-Cut Industrial Masking Solutions
Precision die-cut masking dots, discs, rings, and custom shapes engineered for high-temperature powder coating bake ovens, anodizing baths, and PCB electronics manufacturing.
High-Speed Pre-Cut Masking Efficiency
Eliminate time-consuming manual cutting and inconsistent tape overlap on production lines. Our Green PET Die-Cut Masking Tape combines a heavy-duty polyester carrier film with a cross-linked silicone pressure-sensitive adhesive. Built specifically to handle 230°C bake cycles for up to 30 minutes, these pre-cut pieces maintain sharp masking boundaries without shrinking, edge lifting, or silicone adhesive transfer.
Standard & Custom Die-Cut Formats

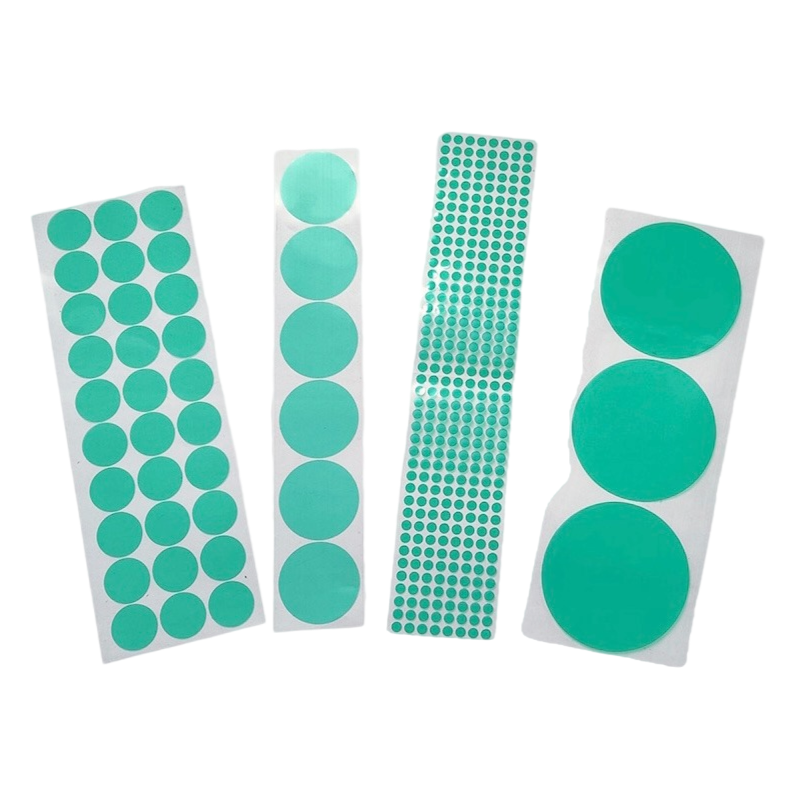

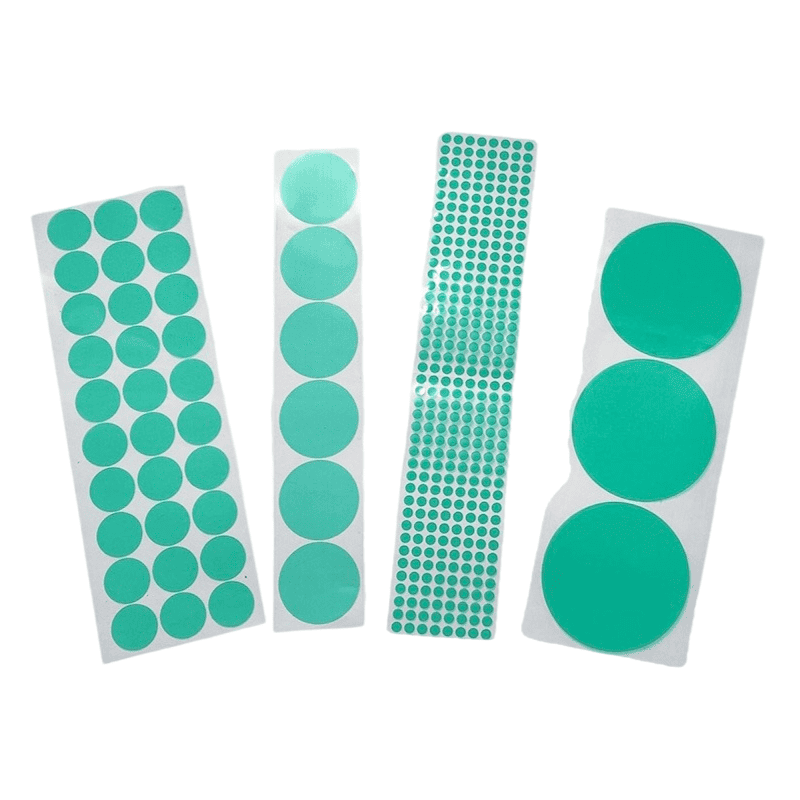

🟢 Pre-Cut Masking Discs
Standard diameters from 3mm to 120mm on easy-release split liners. Ideal for sealing threaded blind holes, grounding points, and bolt holes during powder spraying.
🏷️ Extended Pull-Tab Dots
Features non-adhesive extended side tabs ("finger lift") that allow operators wearing thick work gloves to apply and remove masking dots in seconds.
📐 Custom CAD Geometry
Precision die-cutting manufactured to your exact engineering DXF/DWG drawings, supplied on continuous rolls for automated robotic pick-and-place systems.
Technical Performance Data Sheet (TDS)
| Performance Parameter | Metric Technical Value | Test Method |
|---|---|---|
| Carrier Base Film | Polyester (PET) Film (Green Transparent) | Factory Standard |
| Adhesive System | Cross-linked High-Temp Silicone | Factory Standard |
| Total Thickness Options | 0.06 mm (60 μm) / 0.08 mm (80 μm) | ASTM D-3652 |
| Temperature Peak Resistance | 230°C (446°F) / 30 Minutes | UL-510 Standard |
| Adhesion to Steel (180°) | ≥ 6.5 N / 25mm | ASTM D-3330 |
| Tensile Strength | ≥ 120 N / 25mm | ASTM D-3759 |
| Elongation at Break | ≥ 50 % | ASTM D-3759 |
| Dielectric Strength | 4,500 Volts | ASTM D-149 |
Primary Industrial Applications
- Powder Coating & Electrostatic Painting: Protects threaded inserts, smooth shafts, and conductive flange contacts during high-heat curing cycles.
- PCB Wave Soldering & SMT Assembly: Masks gold fingers and critical surface-mount components from molten solder flow.
- Anodizing & Plating Solutions: Resists harsh chemical baths while maintaining clean, razor-sharp edge lines.
- Composite Bonding & Autoclave Curing: Holds vacuum bagging films in high-temperature composite molding setups.
Need Custom Die-Cut Prototypes or Bulk Quantity Quotations?
Contact our technical engineering team directly for fast CAD drawing review, free sample rolls, and volume pricing.
💬 Direct WhatsApp Engineering Chat (+86 13798812128)Frequently Asked Questions (FAQ)
Q: How much labor time can pre-cut green PET die-cuts save compared to roll tape?
A: Switching from roll tape to pre-cut masking dots or custom shapes typically reduces masking labor hours by 50% to 70% in high-volume powder coating or electronics assembly operations while eliminating operator errors.
Q: Does this green PET tape leave silicone residue after 230°C oven cycles?
A: No. Our high-temperature cross-linked silicone adhesive peels off cleanly in one piece from aluminum, steel, brass, and PCB substrates without leaving ghosting, oil films, or sticky residue.
Q: Can you supply pre-cut masking dots on continuous rolls for automated dispensers?
A: Yes! We supply die-cut discs on continuous release liner rolls with the waste matrix removed, making them fully compatible with automatic pick-and-place dispenser machinery.
Q: What is the minimum order quantity (MOQ) for custom CAD die-cut shapes?
A: We keep standard diameter discs (e.g., 5mm, 10mm, 12mm) in stock with low MOQs. For custom shapes, we provide quick-turn prototype sample runs so you can verify fit before full production.
