5080 Amber Polyester Tape (0.08mm) | Powder Coating & PCB High-Temp Masking
5080 Amber Polyester Tape (0.08mm) | Powder Coating & PCB High-Temp Masking

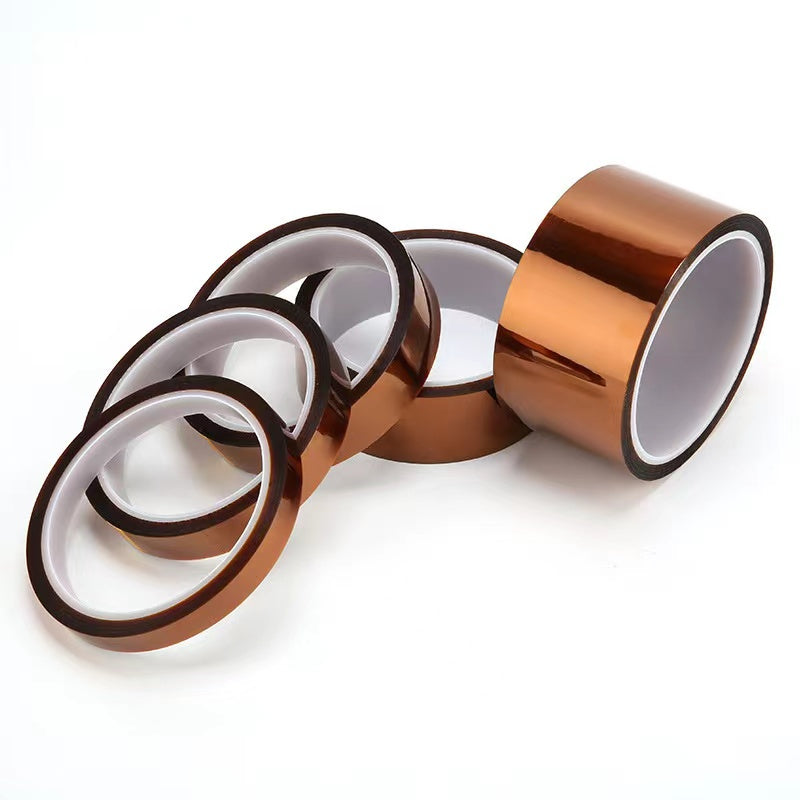

Model 5080 Heavy-Duty Amber Polyester Tape
0.08mm thicker-grade PET backing combined with cross-linked silicone adhesive. Built specifically for high-temperature masking, harsh chemical exposure, and electrical insulation across industrial production lines.
Engineering Performance & Advantage
Enhanced Tensile Strength
Featuring a 0.05mm polyester film core paired with a 0.03mm silicone pressure-sensitive adhesive layer, Model 5080 offers superior puncture resistance during automated application compared to standard 0.05mm or 0.06mm tapes.
Clean Residue-Free Removal
Specially cured silicone adhesive resists shrinking and thermal degradation at continuous temperatures up to 200°C (peak 220°C). Peels off cleanly without ghosting or leaving sticky remnants on metal or PCB gold tabs.
TDS
| Technical Property | Test Result | Test Method |
|---|---|---|
| Product Model | 5080 Amber PET Tape | Factory Standard |
| Total Thickness | 0.08 mm (80 μm) ±0.002 mm | ASTM D-3652 |
| Backing Thickness | 0.05 mm Amber PET Film | ASTM D-3652 |
|
INITIAL TACK
|
12#↓
|
GB/T 4852-2002
|
| Tensile Strength |
300↓MPA
|
GB/T 30776-2014
|
|
ELONGATION
|
120↓ %
|
GB/T 30776-2014
|
| Temperature Resistance | 200°C (392°F) continuous / 220°C peak |
/
|
|
DIELECTRIC
BREAKDOWN
|
6↓ Kv
|
GB/T 1408.1-2006
|
Primary Manufacturing Applications
- Powder Coating & Anodizing Masking: Provides sharp masking lines and prevents paint bleeding during high-temperature bake ovens.
- PCB Plating & Finger Protection: Shields connector pins during wave soldering and gold plating baths without breaking under chemical stress.
- Transformer & Motor Insulation: Serves as a reliable electrical outer wrap for coils, solenoids, and power transformers.
- Die-Cut Assembly Components: Easily converted into custom washers, squares, or specialty shapes with liner backing for high-speed automated placement.
Need Factory Direct Slitting or Free Sample Rolls?
Contact our technical engineering team for custom width cuts, die-cut drawings, and immediate volume quotes.
💬 Direct WhatsApp Consultation (+86 13798812128)FAQ
Q: How does Model 5080 differ from standard 0.06mm amber PET tape?
A: Model 5080 features a thicker 0.05mm PET backing (compared to 0.025mm or 0.035mm on lighter tapes). This extra thickness provides higher dielectric strength, improved tear resistance during manual application, and better performance under heavy sandblasting or thick powder coat applications.
Q: Can Model 5080 withstand chemical masking processes?
A: Yes. The polyester carrier offers excellent resistance to common industrial solvents, acids, and plating solutions, making it ideal for electroplating and circuit board manufacturing.
Q: Do you offer custom slit widths and roll lengths?
A: Absolutely. We can slit master jumbo rolls into custom widths starting from 3mm up to 980mm, with standard roll lengths of 33 meters or 66 meters upon request.
Q: What is the typical shelf life and storage recommendation for Model 5080?
A: Stored under standard conditions (21°C / 70°F and 50% relative humidity, out of direct sunlight), Model 5080 retains its original adhesion performance for at least 12 months from the manufacturing date.
