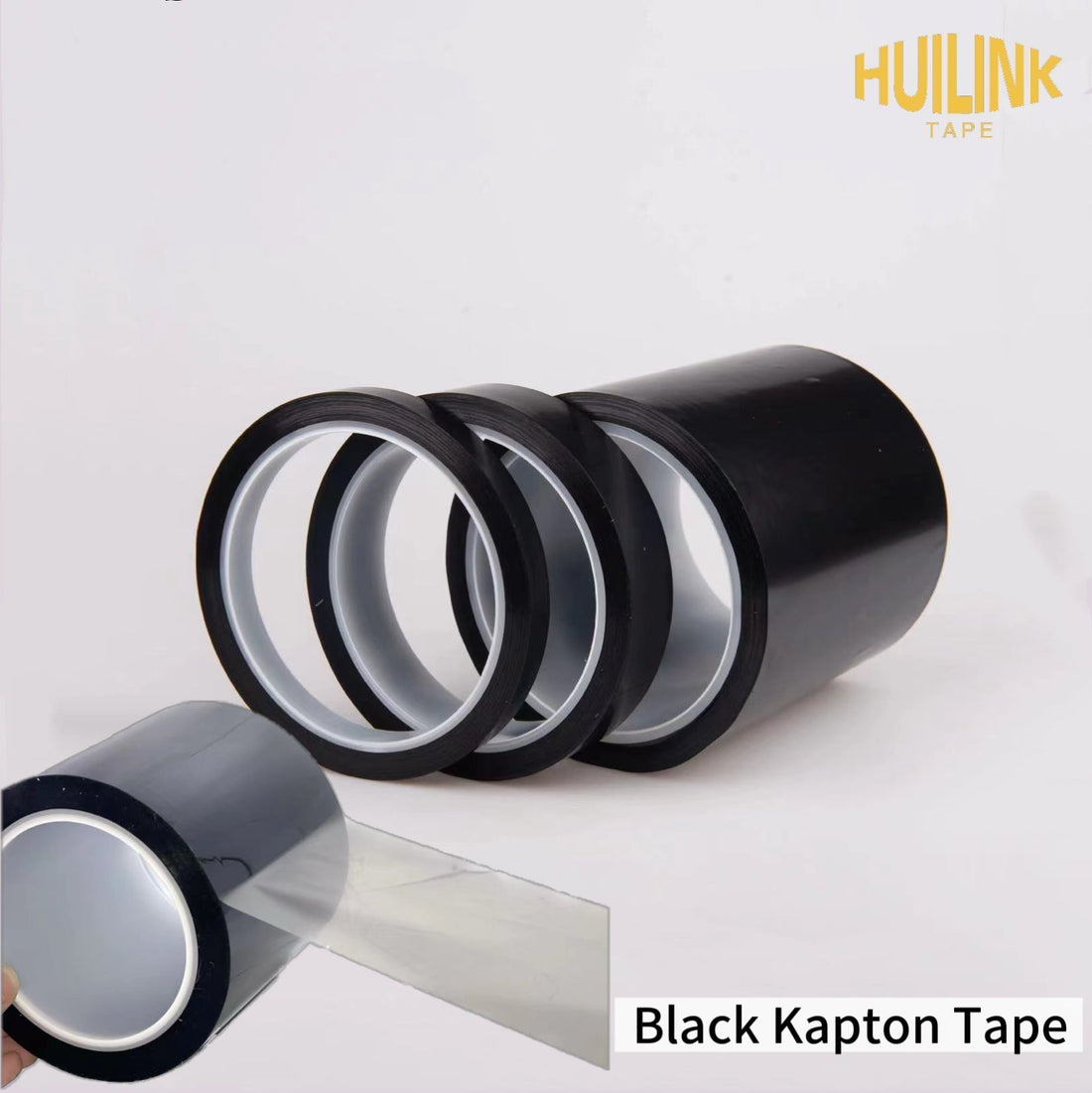

Black Kapton Tape Engineering Guide: When Light Blocking & Aesthetic Uniformity are Non-Negotiable
Standard amber Kapton tape provides exceptional heat resistance, but its translucent nature allows light penetration—making it unsuitable for optical sensors, lens barrels, display modules, and premium dark-housed electronics. Black polyimide tape bridges this gap by combining complete optical absorption with high-temperature silicone adhesion.
Inquire via WhatsApp (+86 13798812128)Why Amber Kapton Fails in Optical & Aesthetic Applications
While standard amber polyimide film is the industry default for wave soldering and motor insulation, optical engineers and industrial designers encounter strict limitations when ambient light management or color uniformity is required.
Standard Amber Kapton Film
- Translucent to visible light spectrum (400–700nm).
- Allows backlight leakage in display bezels & camera modules.
- Bright amber color creates visual contrast inside dark electronic housings.
- Standard emissivity (~0.70).
Black Polyimide (Kapton) Film
- High Optical Density (OD > 3.0): Zero light transmission.
- Matte Black Surface Finish: Eliminates internal optical reflection.
- Concealed Aesthetic Finish: Blends seamlessly into black enclosures & PCB assemblies.
- High Thermal Emissivity (~0.90) for efficient heat radiation.
Critical Applications for Black Polyimide Tape
1. CMOS Image Sensors & Optical Camera Assembly
In digital camera modules, LiDAR sensors, and automotive vision systems, stray light reflections cause lens flares and ghosting artifacts. Black Kapton tape cut into precision die-cut rings masks lens barrels and secures flex circuits without internal light bleed.
2. OLED & LCD Display Edge Masking
Ultra-thin electronic displays require edge sealing tapes that prevent side backlight leakage while withstanding internal heat during high-brightness operation. Black polyimide tape (available in 0.03mm to 0.06mm low-profile formats) provides structural isolation and 100% opacity.
3. Consumer Electronics Aesthetic Concealment
In high-end smartphones, VR headsets, and laptops with transparent or glass back panels, bright amber tape appears visually unappealing. Black Kapton tape offers a sleek, matte black aesthetic while retaining full electrical insulation and 260°C solder resistance.
HuiLink Black Polyimide Tape Technical Specifications
Below are standard factory parameters for our high-opacity black polyimide series (Model 2535-BK):
| Property Parameter | Test Values (Standard) | Test Method |
|---|---|---|
| Carrier Backing | Carbon-Black Pigmented Polyimide Film | Visual Inspection |
| Total Thickness | 0.050 mm ± 0.005 mm (Custom 0.03-0.10mm) | GB/T 7125-2014 |
| Optical Density (OD) | > 3.0 (Zero Visible Light Bleed) | ASTM E1164 |
| Adhesion to Steel | 600 ± 50 gf/25mm | GB/T 2792-2014 |
| Temperature Resistance | 260°C for 30 min (Continuous up to 200°C) | Thermal Chamber Test |
| Dielectric Breakdown | ≥ 4.8 kV | GB/T 1408.1-2006 |
| Surface Finish Options | Matte Black (Anti-Reflective) / Glossy Black | Glossmeter 60° |
Need Custom Die-Cut Black Kapton Shapes for Optics or Displays?
HuiLink supplies precision die-cut sheets, punched hole rings, and custom width rolls with clear release liners for high-speed automatic assembly lines.
