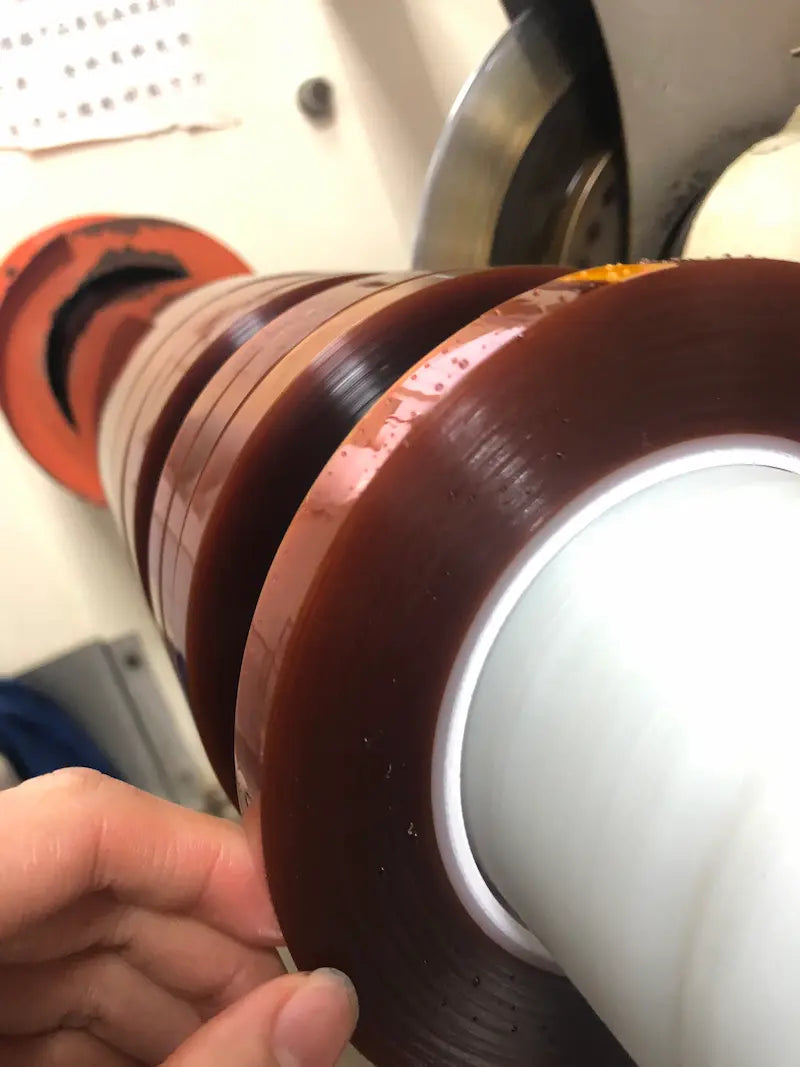

High Temperature Kapton Tape: Why “Heat Resistant” Still Fails in Production
Share
High Temperature Kapton Tape: Why “Heat Resistant” Still Fails in High-Volume SMT Production
Technical Executive Summary
In electronics manufacturing services (EMS), spec sheets stating “260°C Heat Resistance” often create a false sense of security. Factory floor failures—such as adhesive transfer onto gold fingers, micro-lifting along PCB edges, and liner release lockup—are rarely caused by polyimide film burn-through. Instead, they stem from chemical bond breakdown between backing and adhesive, improper pressure-sensitive tack selection, and storage-induced migration.
1. The Anatomy of Thermal Failure in Polyimide Tapes
Standard Polyimide (PI) film withstands continuous operational temperatures exceeding 260°C without mechanical degradation. However, a masking tape system consists of three distinct layers: the polyimide backing, the primer interface, and the silicone pressure-sensitive adhesive (PSA). Failure occurs when thermal dynamics disrupt the equilibrium of these combined elements.
| Failure Mode | Apparent Cause | Actual Engineering Cause | Huilink Process Countermeasure |
|---|---|---|---|
| Adhesive Residue (Ghosting) | Exceeded 260°C limit | Silicone polymer shear breakdown & low anchorage primer | High-anchorage cross-linking primer layer |
| Edge Bleed & Solder Ingress | Poor initial tack | Thermal expansion coefficient mismatch causing micro-gaps | Controlled initial adhesion (680gf–1100gf options) |
| Liner Release Lockup | Defective release liner | Release force transfer to adhesive mass post 6+ month storage | Ultra-low migration silicone formula (3-5g release) |
2. The Hidden Culprit: Release Force Migration During Shelf Storage
A key finding from engineering evaluations reveals that Kapton double-sided tapes (such as Model 25100) often perform well upon factory arrival, yet fail after extended warehousing.
When high-temperature tapes are stored beyond optimal windows without environmental controls (standard recommendation: 23°C, 65% RH):
- Release Force Transfer: The silicone release coating on the PET carrier liner gradually migrates into the primary adhesive mass.
- Loss of Tack: Migration reduces effective surface adhesion strength by up to 15-25% over 12 months.
- Peel Resistance Failure: The release liner bond becomes tight, leading to liner tear or automated feeder jamming on high-speed SMT placement lines.
Technical Formulation Adjustment Matrix (Model 25100 Series)
To counter shelf-life degradation, targeted formulation parameters are selected based on production cycle time:
- Standard Production Grade: Adhesion 680±50 gf/25mm | Liner Release 5–8g
- Extended Shelf High-Tack Grade: Adhesion 1100±50 gf/25mm | Liner Release 8–10g (Maintains double initial tack over long storage)
- Precision Automated Peel Grade: Adhesion 1100±50 gf/25mm | Ultra-Low Release 3–5g (Optimized for tight automated tolerances)
Need TDS / RoHS / REACH Test Reports for Engineering Review?
Receive complete technical verification reports and adhesion testing logs directly on your mobile device.
3. Production Floor Protocol: Preventing Thermal Tape Failures
To prevent line downtime and post-soldering residue cleanup costs during wave soldering or transformer winding, implement these four production rules:
- Surface Cleanliness Standard: Organic contaminants or residual cutting oils on PCB contact edges lower effective wetting tension, forcing adhesives to lift under hot air thermal shock.
- Pressure Application Verification: Pressure-sensitive adhesives (PSA) require active roller pressure (minimum 2.0 kg/cm²) during application to establish maximum molecular contact surface prior to heat exposure.
- Dwell Time Optimization: Allow a 30-minute dwell time after tape application before entering reflow or wave solder pre-heat stages. This allows the cross-linking silicone matrix to normalize.
- Controlled Storage Environment: Maintain raw roll stock at 23°C ± 2°C and 65% Relative Humidity away from UV radiation to delay release agent migration.
