PCB Polyimide Tape Guide: How to Choose Kapton Tape for Electronics Manufacturing
By Vicky Leo | Technical Sales Lead at Hong Kong Huilink Trading Co., Limited
The Unseen Yield Factor in High-Density Circuit Assembly
In SMT and wave soldering lines, process engineers spend weeks optimizing thermal reflow profiles and flux chemistry, while treating Polyimide (Kapton) tape as a commodity. Yet, specifying an incorrect tape thickness, adhesive coat weight, or ESD surface rating leads directly to gold finger solder bleed, static component latch-up, and costly manual solvent scrubbing.
Choosing the optimal polyimide tape requires matching the mechanical, thermal, and electrical properties of both the film backing and the silicone pressure-sensitive adhesive to your exact production step. Below is the practical engineering decision framework developed by Huilink Tape for global electronics OEMs.
1. SMT & PCB Assembly Tape Selection Decision Matrix
| PCB Process Step | Primary Failure Risk | Recommended Backing & Tape Model | Key Specification Target |
|---|---|---|---|

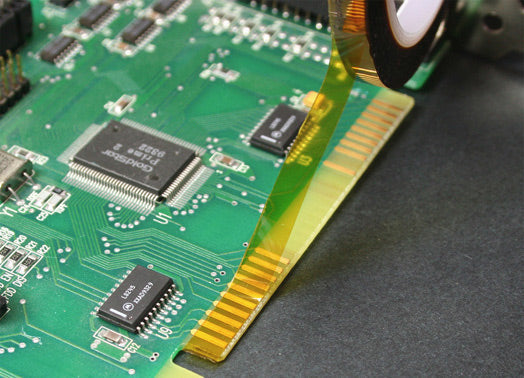

| Wave Solder Gold Finger Masking | Solder leakage, tape lifting, residue | 1mil Backing Amber Polyimide (Model 2535) | Flexible step conformability, 260°C zero residue |
| Static-Sensitive Component Assembly | Triboelectric ESD charge breakdown (>5kV) | ESD Anti-Static Polyimide (Model 2550 ESD) | 107 – 109 Ω surface resistivity, <50V peel voltage |
| BGA Reballing & Localized Rework | Hot air nozzle displacement, film tearing | 2mil Backing Heavy Duty Polyimide | High tensile strength, 300°C short-term peak resistance |
| Rotary Die-Cut Stamping & Automation | Tape web stretching, feeder jams | Lined Polyimide with PET/Fluorosilicone Liner | Dimensional stability, ±0.05mm kiss-cut precision |
2. Four Critical Parameters to Evaluate Before Ordering
A. Polyimide Backing Film Thickness (1 mil vs 2 mil)
Standard 1 mil (0.025mm) backing provides superior flexibility, allowing the tape to seal tightly over raised copper traces without leaving air channels where solder flux can creep. 2 mil (0.050mm) backing is chosen when puncture resistance or structural stiffness is required.
B. Silicone Crosslinking & Anchor Primer Chemistry
Raw silicone adhesive will detach from polyimide film during 260°C wave solder heat. Huilink applies a chemical primer anchorage layer followed by thermal crosslinking, ensuring 100% clean peeling off gold plating without ghosting.
C. Anti-Static Control Requirements
Unwinding standard tape creates up to 10,000V of triboelectric charge. On high-density SMT boards, specify ESD Polyimide tape (107–109 Ω surface resistivity) to protect sensitive CMOS and IC chips.
D. Slitting Width Tolerance & Roll Edges
Rough or burred roll edges cause micro-gaps along PCB connector fingers, leading to solder bleed. Precision slitting ensures razor-sharp edge definition down to 2mm width.
Test Free Kapton Sample Rolls on Your Own SMT Line
We supply free sample rolls (slit to your required width from 3mm to 500mm x 33m) with factory COA, TDS, and RoHS compliance certificates.
Request Free Sample Pack via WhatsApp3. Why Global Electronics Assembly Plants Trust Huilink
At Hong Kong Huilink Trading Co., Limited, our Dongguan production facility operates precision precision coating and slitting lines dedicated to industrial adhesive tapes:
- 100% Zero-Residue Guarantee: Every batch undergoes thermal bake testing at 260°C for 30 minutes to verify clean removal off gold and copper substrates.
- Flexible Minimum Orders & Fast Slitting: Custom widths (e.g., 4mm, 6.5mm, 12mm, 19mm) slit and dispatched within 3-5 working days.
- Full Export Documentation: Complete TDS, MSDS, REACH (SVHC), and RoHS test reports supplied for seamless customs clearance.
