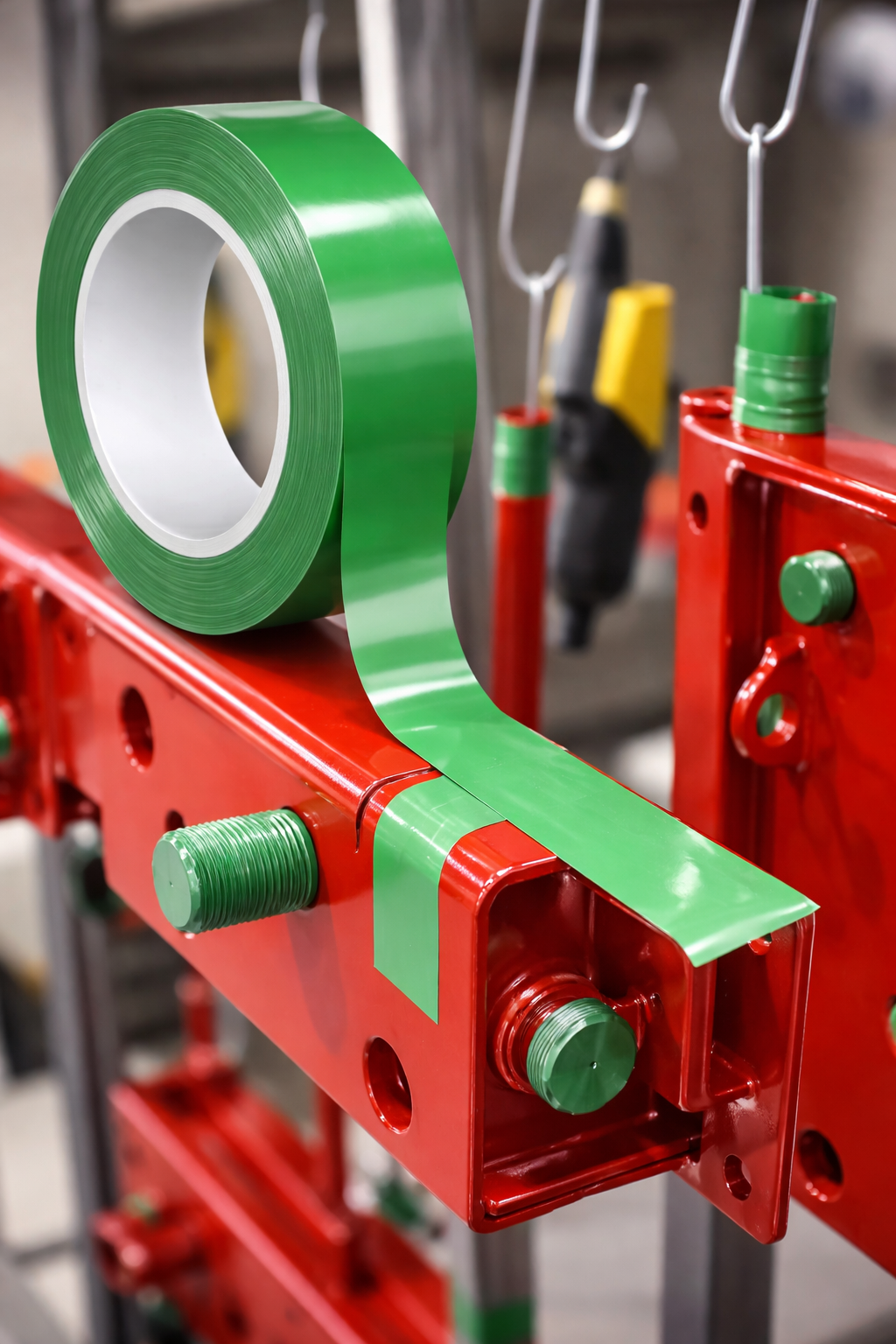

Tape for Powder Coating: A Practical Guide to Clean Masking and Perfect Finishes

In powder coating, the difference between a flawless finish and costly rework often comes down to one small detail — masking.

Choosing the right tape for powder coating ensures sharp edges, protects critical surfaces, and prevents contamination during high-temperature curing.

Yet many manufacturers still underestimate how important tape selection is until defects start appearing.

---

Why Masking Is Critical in Powder Coating

Powder coating involves applying a dry powder to a surface and curing it at high temperatures, typically above 200°C.

During this process, any unprotected area will be coated, including threads, contact points, and precision-machined surfaces.

Masking tape is used to:

• Keep powder off critical areas
• Create sharp, clean coating lines
• Protect electrical contact surfaces
• Reduce post-processing and rework

Without proper masking, manufacturers risk poor finish quality and increased production costs. :contentReference[oaicite:0]{index=0}

---

What Tape Is Used for Powder Coating?

Not all tapes can survive the powder coating process. Standard masking tapes will fail under heat, leaving residue or lifting during curing.

Industrial powder coating requires high-temperature masking tapes designed specifically for this environment.

1. Polyester (PET) Tape — Industry Standard

Polyester tape is the most widely used solution for powder coating masking.

• Heat resistance up to 200–220°C
• Silicone adhesive for clean removal
• Creates sharp paint lines
• Excellent chemical resistance

It is considered the standard choice for flat surface masking and general applications due to its balance of cost and performance. :contentReference[oaicite:1]{index=1}

2. Polyimide (Kapton) Tape — For Extreme Heat

When curing temperatures are higher or exposure time is longer, polyimide tape is preferred.

• Withstands up to 260°C+
• No shrinkage under heat
• Ideal for critical or long-cycle processes

3. Glass Cloth Tape — Heavy Duty Applications

For thick coatings or abrasive environments, glass cloth tape offers additional strength and durability.

---

Key Properties to Look for in Powder Coating Tape

Choosing the wrong tape can lead to defects such as jagged edges, adhesive residue, or coating bleed.

Here are the key factors professionals focus on:

• Heat Resistance: Must handle 200°C+ curing temperatures
• Adhesive Stability: No lifting or melting during baking
• Clean Removal: Leaves no residue after curing
• Edge Definition: Ensures sharp coating lines
• Conformability: Fits complex shapes and surfaces

Most high-performance tapes use silicone adhesive because it maintains stability under extreme heat. :contentReference[oaicite:2]{index=2}

---

Common Applications in Powder Coating

✔ Thread & Hole Protection

Prevents coating from entering threaded areas or assembly points.

✔ Electrical Contact Masking

Ensures conductivity by keeping specific surfaces uncoated.

✔ Decorative Edge Masking

Creates clean color separation in multi-coat designs.

✔ Surface Protection

Protects sensitive areas from overspray and contamination.

---

Common Mistakes to Avoid

• Using regular masking tape instead of high-temperature tape
• Choosing incorrect thickness for detailed masking
• Leaving tape on too long after curing
• Applying tape on contaminated surfaces

Standard tapes can fail under heat, causing adhesive residue or edge lifting, which directly impacts finish quality. :contentReference[oaicite:3]{index=3}

---

Why Polyester Tape Is the Best Choice for Most Applications

Among all options, polyester tape offers the best balance between performance and cost.

It is widely used because:

• Handles typical curing temperatures (around 200°C)
• Removes cleanly in one piece
• Maintains edge precision
• Available in multiple thicknesses and colors

For most powder coating factories, polyester tape is the go-to solution for daily operations. :contentReference[oaicite:4]{index=4}

---

Why Manufacturers Choose HUILINK

At HUILINK, we supply high-performance polyester and polyimide tapes for powder coating and industrial masking.

• Factory direct pricing
• Custom widths and die-cut solutions
• Stable quality for bulk orders
• Export experience in Europe, Southeast Asia, and North America

---

📲 Get Free Sample & Technical Support

Looking for reliable tape for powder coating?

We can recommend the right tape based on your curing temperature, coating thickness, and application needs.

✔ Fast reply | ✔ Free samples | ✔ Factory price

---

Final Thoughts

In powder coating, masking is not just a preparation step — it’s a key factor in achieving professional results.

Using the right tape ensures clean edges, reduces defects, and improves overall production efficiency.

If you're serious about quality, investing in the right masking solution is non-negotiable.
