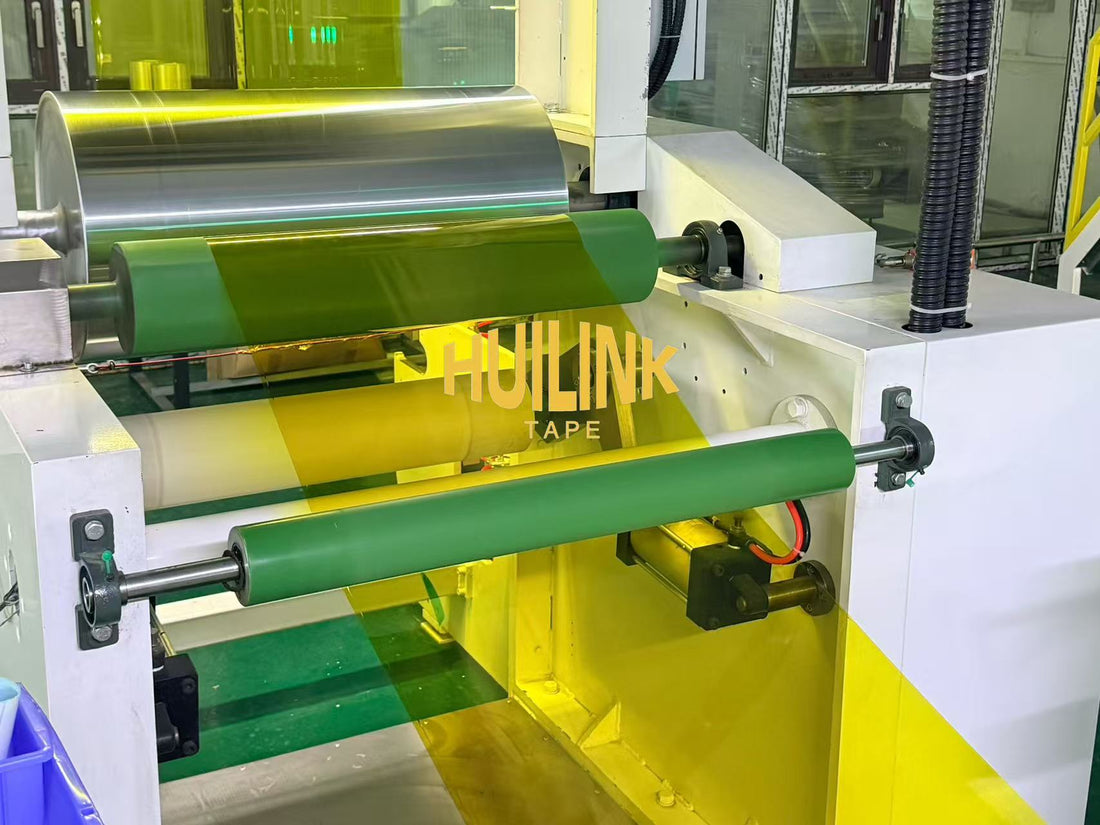

Kapton Polyimide Tape for PCB: Process Applications & Selection Guide
By Oliva Chou | Overseas PCB Materials Engineering Lead at Hong Kong Huilink Trading Co., Limited
The High Cost of Inappropriate PCB Masking Tapes
During lead-free wave soldering (250°C–260°C) and conformal coating curing, standard masking tapes fail catastrophically. Under-specifying tape leads to solder tin contamination on gold contact fingers, solvent bleed onto board test points, and baked-on adhesive residue that requires manual isopropyl alcohol scrubbing—slashing hourly assembly yields.
Kapton Polyimide Tape has established itself as the non-negotiable standard across surface mount technology (SMT), wave soldering, and board coating lines. Below is the comprehensive process-by-process guide to selecting the exact film thickness, adhesive tack, and dielectric rating for your PCB manufacturing line.
1. PCB Process Phase to Kapton Tape Specification Matching Matrix
| PCB Assembly Phase | Process Stress Factors | Recommended Kapton Tape Grade | Target Technical Parameter |
|---|---|---|---|
| Wave Solder Gold Finger Masking | Molten solder bath (260°C), wave impact | 1mil Backing Amber Kapton (Model 2535) | High step-down conformability, zero flux bleed |
| Conformal Coating Masking (Spray/Dip) | Solvent attack (acrylic/polyurethane), UV oven | Low-Tack Precision Kapton / Lined Tape | Razor-sharp edge lines, zero capillary creep |
| SMT Reflow Component Securing | Hot air convection (240°C–260°C peak) | ESD Anti-Static Kapton (Model 2550 ESD) | 107–109 Ω surface resistivity, <50V peel static |
| BGA Reballing & Localized Rework | Focused hot air nozzle (>300°C short peak) | 2mil Backing Heavy Duty Kapton | High puncture resistance, thermal heat sink barrier |
2. Four Primary Process Applications in Electronics Assembly

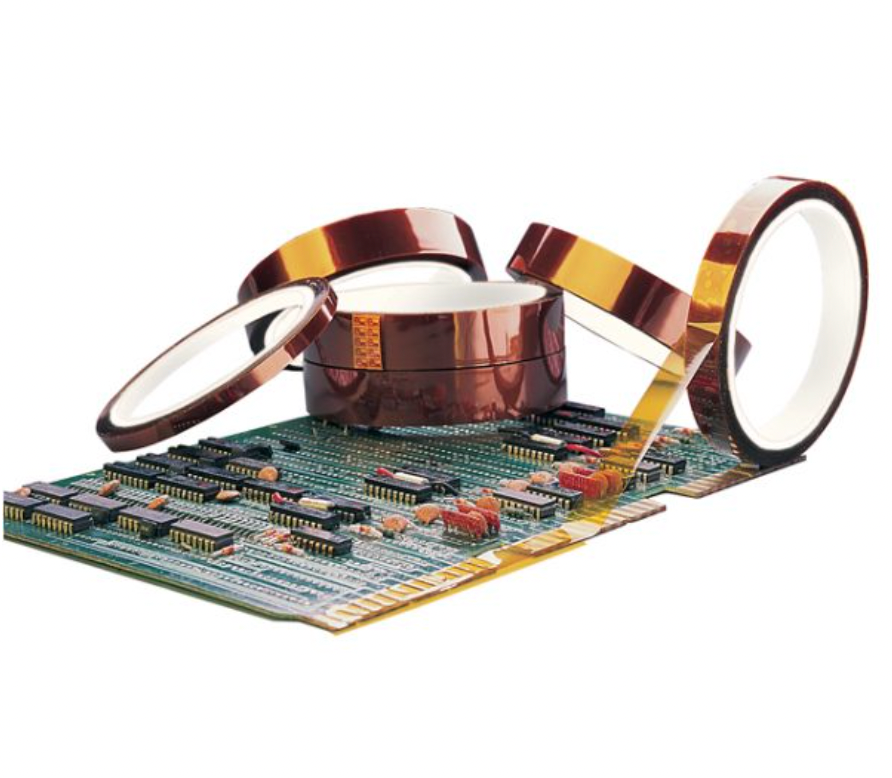

A. PCB Gold Finger Edge Protection
Protects critical edge connectors and gold contact pads as the board passes through molten solder baths. 1mil polyimide film conforms tightly over step transitions between copper traces and FR4 substrates, locking out solder bridges.
B. Conformal Coating Masking Barrier
Secures connectors, switches, test points, and ground pads before dipping or automated spraying of protective conformal coatings. The silicone pressure-sensitive adhesive resists solvent dissolution, peeling off cleanly post-cure.
C. Temporary Component Securing in SMT Reflow
Holds small surface mount devices (SMDs), flexible printed circuits (FPCs), and wire harnesses in place during high-velocity convection reflow oven cycles, preventing component shift or tombstoning.
D. Thermal Protection During BGA & QFP Rework
Shields adjacent sensitive components and plastic connector housings from direct hot air nozzle blast when unsoldering or reballing damaged BGA chips.
Request Free Kapton Polyimide Sample Rolls for SMT Line Trials
We supply free testing sample rolls (slit to your exact required width from 3mm to 500mm x 33m) with factory COA, TDS, and RoHS compliance certificates.
Request Free Sample Pack via WhatsApp3. 3-Step Engineering Selection Procedure
- Evaluate Surface Step Profiles: Choose 1mil backing (0.025mm) for fine-pitch traces and gold fingers to maximize conformability. Reserve 2mil backing (0.050mm) for flat surfaces requiring higher dielectric strength (>6.5 kV).
- Check ESD Sensitivity Limits: If assembling CMOS, microprocessors, or sensors, specify anti-static ESD Kapton tape (107–109 Ω) to eliminate triboelectric charge spikes during unwinding.
- Verify Slitting Edge Quality: Ensure roll edges are slit with razor precision to avoid micro-fraying that allows solder tin or coating liquid to creep under tape edges.
