Polyimide Tape for 3D Printing: Fix Warping & Bed Adhesion Issues
By Martin Chan | Overseas Technical Sales Lead at Hong Kong Huilink Trading Co., Limited
The Root Cause of 3D Print Warping: Thermal Contraction
High-performance engineering thermoplastics like ABS, Nylon (PA), and Polycarbonate (PC) shrink significantly as they cool from nozzle extrusion temperatures (240°C–290°C) down to ambient room temperatures. Without powerful bed adhesion, thermal tension pulls the bottom print corners upward, causing dimensional distortion, nozzle collision, or total build plate detachment.

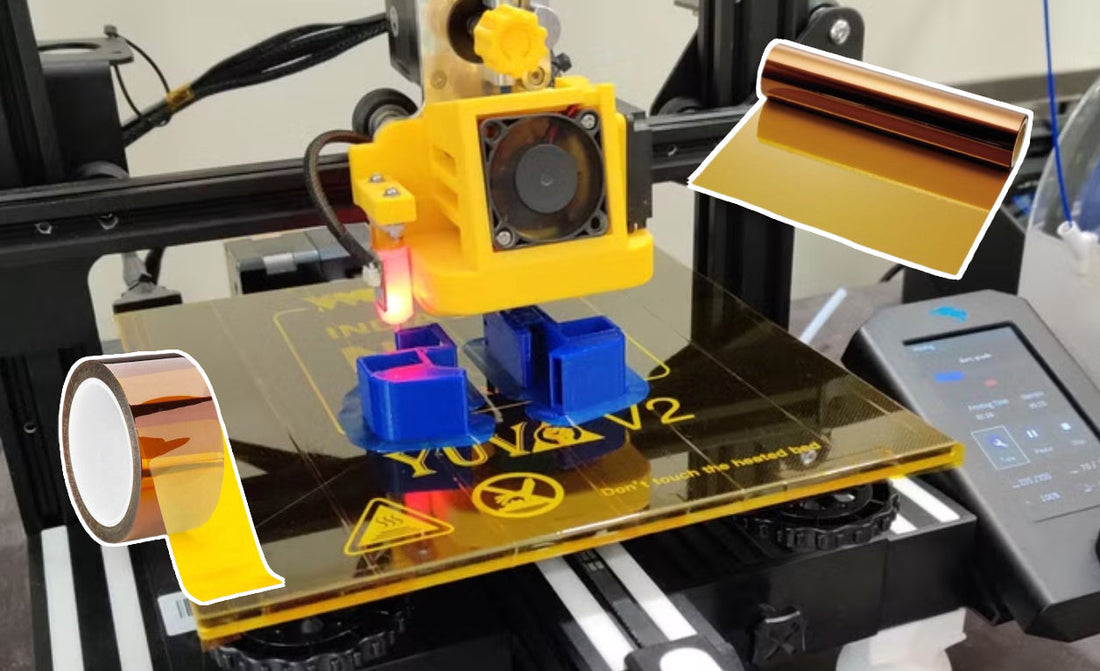

While hairsprays and glue sticks offer temporary fixes, industrial additive manufacturing hubs rely on Wide-Format Polyimide (Kapton) Tape. Polyimide film maintains structural stability up to 260°C continuous heat, providing a smooth, high-tack interface that anchors the first layer firmly to glass, spring steel, or aluminum build plates.
1. Filament Thermal Stress & Bed Adhesion Matrix
| Filament Polymer | Warping Tendency | Recommended Bed Temp | Polyimide Tape Effectiveness | First Layer Secret |
|---|---|---|---|---|
| ABS (Acrylonitrile Butadiene Styrene) | Extreme High | 100°C – 110°C | Outstanding (Industry Standard) | Wipe tape face with acetone or ABS juice |
| Nylon / PA (Polyamide) | Extreme High | 80°C – 100°C | Excellent | Apply thin PVA layer on top of tape |
| PETG (Polyethylene Terephthalate Glycol) | Moderate | 70°C – 80°C | Good (Acts as release barrier) | Prevents PETG from tearing bare glass |
| PLA (Polylactic Acid) | Low | 50°C – 60°C | Very Good | Allows printing without heated bed if needed |
2. 3-Step Bubble-Free Application Procedure
When installing polyimide tape onto a glass or spring steel 3D print surface, air bubbles create localized cold spots that ruin first-layer squish. Follow this wet-application process used by 3D printer OEMs:
Step 1: Surface Degreasing & Soapy Water Spray
Clean the glass or PEI plate thoroughly with 99% Isopropyl Alcohol (IPA) to remove finger oils. Spray a light mist of water mixed with a single drop of liquid dish soap across the glass surface. This slip-layer prevents the silicone adhesive from grabbing instantly.
Step 2: Wide Sheet Alignment & Squeegee Flattening
Peel the release liner from wide-format polyimide tape (e.g., 200mm–300mm wide roll). Lay the film gently onto the wet glass. Using a flexible rubber squeegee or plastic card, push trapped water and air bubbles firmly outward from the bed center to the outer edges.
Step 3: Thermal Cure & Surface Activation
Turn on the print bed heat to 80°C for 5 minutes. The heat evaporates residual moisture and fully activates the silicone pressure-sensitive adhesive. Wipe the top polyimide surface with acetone to slightly etch the film surface for maximum ABS adhesion.
Request Wide-Roll Polyimide Samples for Your 3D Printing Facility
We supply custom cut-width rolls (from 100mm to 500mm wide x 33m) and die-cut sheet covers tailored for Voron, Bambu Lab, Creality, and industrial 3D printer build plates.
Request Free Sample Pack via WhatsApp3. Why Industrial 3D Printer Makers Specify Huilink Kapton Tape
Sourcing polyimide tape for 3D printing requires strict thickness uniformity and temperature stability. At Hong Kong Huilink Trading Co., Limited, our Dongguan manufacturing base provides engineered advantages:
- Zero-Seam Wide Formats: Seamless widths up to 500mm eliminate ugly seam lines on bottom print surfaces, ideal for large-format industrial 3D printers.
- High Shear Silicone Formulation: Our high-crosslink silicone adhesive resists lateral shear forces exerted by heavy 10kg ABS prints without sliding on the bed.
- Residue-Free Clean Peel: When replacing worn bed covers, Huilink polyimide tape peels off cleanly from aluminum or glass without leaving hard silicone residue behind.
