Polyimide Tape with Liner: When and Why It Matters in Industrial Applications
By Martin Chan | Overseas Technical Sales Lead at Hong Kong Huilink Trading Co., Limited
The Precision Converting Challenge: Tension Deformation
Standard rolls of Polyimide (Kapton) tape are wound directly onto plastic cores. While ideal for manual hand-application, unlined tape collapses under high-speed rotary die-cutting blades. Without a supporting release carrier, thin 1mil (0.025mm) polyimide film stretches under web tension, causing shape distortion on die-cut washers, adhesive edge squeeze, and feeder jams on automated SMT lines.

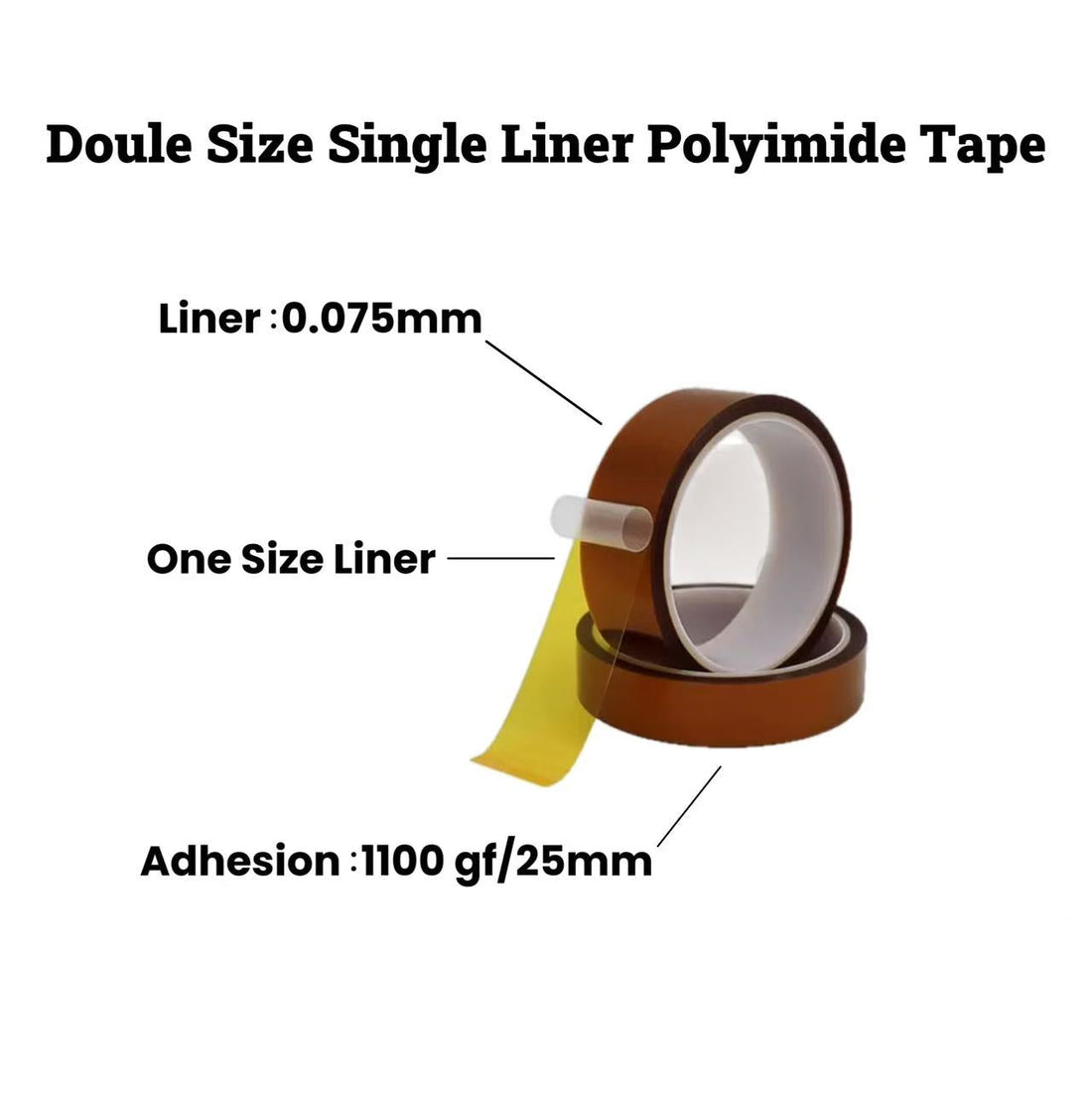

To solve these automated assembly bottlenecks, specifying Polyimide Tape with a Release Liner (PET or fluorosilicone-coated liner) transforms a standard adhesive tape into a rigid, dimensionally stable converting substrate.
1. Process Comparison: Unlined vs. Lined Polyimide Tape
| Performance Feature | Standard Unlined PI Tape | Polyimide Tape with PET / Fluorosilicone Liner |
|---|---|---|
| Rotary Die-Cutting Stamping | Poor (Film stretches, edge burrs) | Outstanding (±0.05mm precision cut) |
| Automated Pick-and-Place Feeder | High Risk of Tape Curling | Smooth Automated Peel & Dispense |
| Adhesive Layer Protection | Exposed to airborne dust during slitting | 100% Sealed Cleanroom Protection |
| Release Force Control | Fixed roll unwinding force | Tunable (15 – 30 gf/in Fluorosilicone) |
| Double-Sided Bonding (Model 2570) | Requires manual interleaving | Factory Pre-Laminated Dual Release Liners |
2. Critical Industrial Scenarios Requiring Lined Tape
A. High-Speed Rotary Die-Cutting & Stamping
Converting houses stamp millions of custom shapes (like BGA masking dots, transformer insulation washers, and battery thermal barriers). The PET liner acts as an anvil carrier film, allowing full kiss-cutting through the polyimide tape layer without slicing the liner substrate.
B. Automated Tape Dispensing in SMT Cleanrooms
Robotic pick-and-place equipment requires continuous flat tape feeding. Lined polyimide tape stays perfectly flat, preventing static charge build-up and edge curl as the robot peels individual die-cut pieces for gold finger masking.
C. Double-Sided Polyimide Bonding (Model 2550)
For double-sided high-temperature mounting (bonding heatsinks, EV battery sensors, or flexible printed circuits), dual release liners protect both silicone adhesive faces until final component alignment.
Request Custom Slit Lined Polyimide Sample Rolls for Converting
We manufacture master jumbo rolls (500mm x 33m/66m/100m) with 50μm PET release liners or fluorosilicone release films. Free sample rolls ready for die-cutting trials.
Request Free Sample Pack via WhatsApp3. Liner Chemistry: Why Fluorosilicone Release Is Essential
Because high-temperature polyimide tape relies on aggressive pressure-sensitive silicone adhesive, standard silicone-coated paper liners will permanently lock onto the tape adhesive layer.
- Fluorosilicone Chemistry: Our Dongguan coating line applies a specialized fluorosilicone release coating onto clear PET backing film. This ensures smooth, predictable release (15–30 gf/25mm) without silicone cross-contamination.
- Dimensional Stability under Storage: Fluorosilicone PET liners resist ambient humidity fluctuations during international sea shipping (EXW/FOB/CIF), eliminating liner bubble formation or tunneling.
- Zero Residual Contamination: Ensures the exposed silicone adhesive face retains 100% of its initial tack (≥ 23# steel ball) and heat resistance (260°C for 30 minutes).
Get Direct Factory Pricing for Lined Polyimide Master Rolls
Hong Kong Huilink Trading Co., Limited provides direct factory pricing, custom width slitting, REACH/RoHS certification, and flexible payment terms (100% TT / 50% deposit).
