Polyimide Tape Slitting: How to Choose the Right Width and Tolerance
By Martin Chan | Technical Sales Lead at Hong Kong Huilink Trading Co., Limited
The Hidden Cost of Poor Slitting Quality in Electronics Manufacturing
When process engineers order Polyimide (Kapton) tape for SMT gold finger masking or transformer winding, they rigorously verify film thickness (1mil vs 2mil) and temperature limits (260°C). However, over 70% of automated feeder jams and edge solder flux creep issues stem from a neglected parameter: Tape Slitting Quality.
A rough roll edge with micro-burrs creates microscopic gaps along PCB connector contacts. Conversely, width variance exceeding ±0.2mm causes custom die-cut shapes to misalign during high-speed rotary stamping. Selecting the correct slitting method, core sizing, and width tolerance is vital for maintaining zero-defect SMT assembly.
Slitting Blade Technology Comparison: Razor vs. Rotary Shear

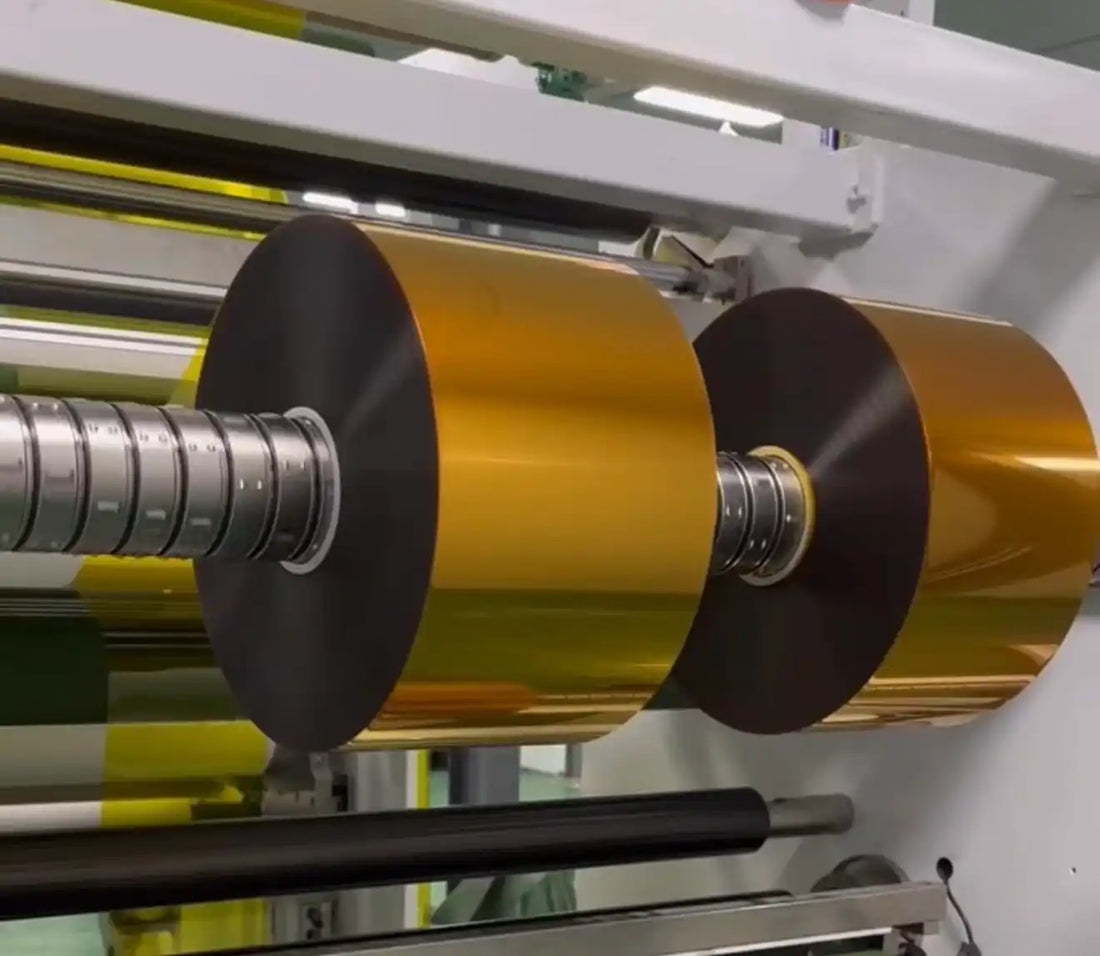

At Hong Kong Huilink Trading Co., Limited, our Dongguan converting plant utilizes high-precision rewind slitting machines to process master jumbo rolls (500mm x 33m / 66m / 100m). Understanding the difference between slitting blade technologies ensures optimal edge quality:
| Slitting Method | Cutting Mechanism | Achievable Tolerance | Edge Profile & Burr Risk | Primary Industrial Use |
|---|---|---|---|---|
| Razor Slitting (Standard) | Stationary blades slicing film web | ± 0.15mm to ± 0.20mm | Moderate risk of micro-burrs on thick films | General transformer wrapping, powder coating masking |
| Rotary Shear Slitting (Precision) | Interlocking rotating circular knives | ± 0.05mm to ± 0.10mm | 100% Burr-Free, dead-flat side walls | Automated SMT reel feeders, PCB gold finger masking |
| Lathe Log Slitting | Single rotating blade slicing a full log | ± 0.20mm | Risk of edge sticky residue under high speed | Fast turnaround wide rolls (>50mm) |
