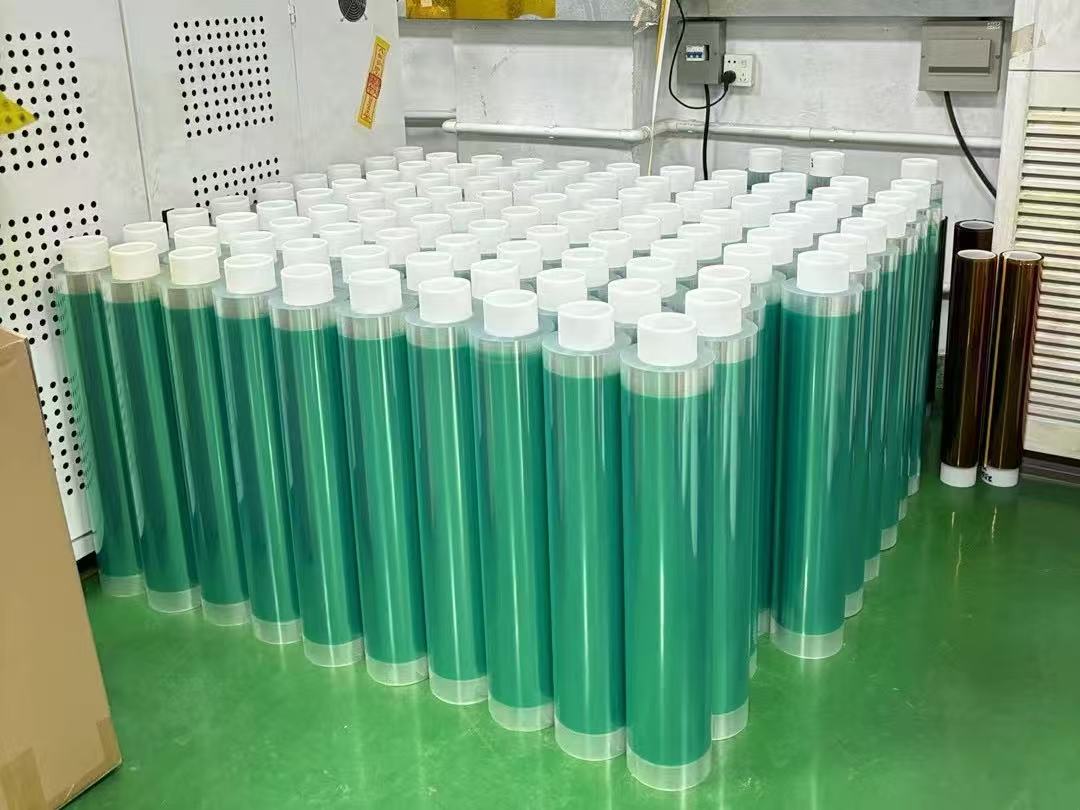

How Polyester Tape Is Manufactured: A B2B Sourcing & Quality Inspection Guide
Share
Targeting Zero Residue & Strict Width Tolerances in Mass Production
Sourcing polyester (PET) masking tape isn't just about comparing price per square meter ($/m²). A $0.05 price difference often masks critical manufacturing shortcuts—such as uncalibrated corona treatment, uneven adhesive coat weight, or incomplete oven vulcanization that causes catastrophic line shutdown during powder coating or transformer insulation.
1. Step-by-Step Breakdown: The 4-Stage PET Tape Production Line
To evaluate a tape manufacturer's capabilities, procurement officers must understand how raw polyester resin transforms into high-temperature green, amber, or clear PET protective tapes. Every stage directly dictates performance consistency across batch orders.
BOPET Extrusion & Corona Treatment
PET resin is biaxially stretched for high tensile strength (≥180 MPa). Surface is surface-bombarded via corona to raise wetting tension above 42 dynes/cm.
Precision Slot-Die Adhesive Coating
Cross-linked silicone or acrylic pressure-sensitive adhesive (PSA) is applied with a thickness precision within ±1 micron (0.001mm) across the 1020mm jumbo roll.
Multi-Zone Oven Thermal Curing
Passing through 30-meter multi-zone ovens (120°C to 175°C) to fully cure volatile solvents, eliminating outgassing and sticky edge bleed.
Dust-Free Slitting & Core Rewinding
Precision circular knife slitting trims jumbo rolls into customer rolls (from 3mm up to 1020mm) onto dust-free plastic cores.
2. Key Technical Specifications: What Sourcing Managers Must Verify
When reviewing factory Technical Data Sheets (TDS), buyers must look beyond simple color options (Green, Amber, Clear). Compare how adhesive formulation affects working limits:
| Parameter | Green PET Silicone Tape (0.05mm/0.06mm) | Amber PET Polyimide-Alternative | Clear / Low-Tack PET Tape |
|---|---|---|---|
| Adhesive System | silicone Pressure Sensitive | Modified Silicone | Cross-linked Solvent Acrylic |
| Temperature Endurance | 200°C (392°F) for 30 min | 180°C - 200°C Continuous | 130°C - 150°C Max |
| 180° Peel Adhesion (N/25mm) | 6.0 - 8.5 N/25mm | 5.5 - 7.5 N/25mm | 2.0 - 4.5 N/25mm |
| Dielectric Breakdown | 4,000 - 5,000 Volts | >4,500 Volts | 3,000 - 4,000 Volts |
| Primary Application | Powder coating masking, anodizing | PCB gold finger masking, motor wrapping | Surface protection, optical die-cutting |
3. B2B Quality Control Checklist: How to Spot Subpar Tape Before Shipping
Adhesive failure during customer production results in expensive product recalls, rework labor, and damaged supplier trust. When performing factory audits or receiving pre-shipment samples, inspect these 3 critical indicators:
🔍 3-Point Pre-Shipment Testing Protocol
Apply tape to clean aluminum and stainless steel panels. Bake in a thermal oven at 200°C for 30 minutes. Peel off at a 90° angle while warm. Passing Criteria: Zero adhesive transfer, ghosting lines, or sticky residue on the metal substrate.
Inspect roll sidewalls. Low-end slitting machines generate heat friction that causes silicone adhesive bleed, making roll sides sticky and attracting factory dust.
Measure across the roll using a micrometer. Total thickness (PET film + adhesive) must stay within strict boundaries (e.g., 0.05mm ±0.003mm) to guarantee consistent die-cut depth.
Need Custom Roll Widths or Die-Cut Masking Dots?
Huilink provides custom log roll slitting from 3mm up to 1020mm master roll widths with low MOQs and rapid air shipping.
📲 Get Instant Factory Direct Quote on WhatsApp (+86 13798812128)4. Cost Drivers in Polyester Tape Sourcing: How to Optimize Budget
Understanding factory cost drivers empowers purchasing teams to negotiate without sacrificing tape quality:
- Raw PET Film Origin: Optical-grade virgin PET film costs roughly 15–20% more than recycled or off-spec industrial film, but prevents pinhole dielectric breakdowns during electrical masking.
- Silicone Solvent vs. Solventless Coating: High-temperature silicone adhesives require high-solvents for smooth slot-die levelling. Factories operating environmental VOC recovery systems deliver higher thermal stability without batch-to-batch coat variation.
- Packaging Protection: Export shipments require moisture-proof polybags and reinforced corrugated wooden pallet packaging to prevent core crushing during CIF/FOB sea transit.
Frequently Asked Questions for B2B Sourcing
Q1: What is the shelf life of silicone-coated polyester tape?
When stored at 21°C (70°F) and 50% relative humidity out of direct sunlight, high-grade PET silicone tape maintains its specified peel adhesion and clean-removal properties for 12 to 18 months from the manufacturing date.
Q2: Can green polyester tape replace Kapton tape to lower cost?
Yes, if working temperatures do not exceed 200°C (392°F). Green PET tape is significantly more cost-effective than Kapton (polyimide) tape and is widely used for powder coating, e-coating, and anodizing masking.
Q3: What lead times should buyers expect for jumbo roll vs slit roll orders?
Standard jumbo rolls (1020mm x 33m/66m) are routinely stocked and ship within 3-5 days. Custom slit widths or die-cut pieces typically require 7-10 business days for precision tooling and automated slitting.
