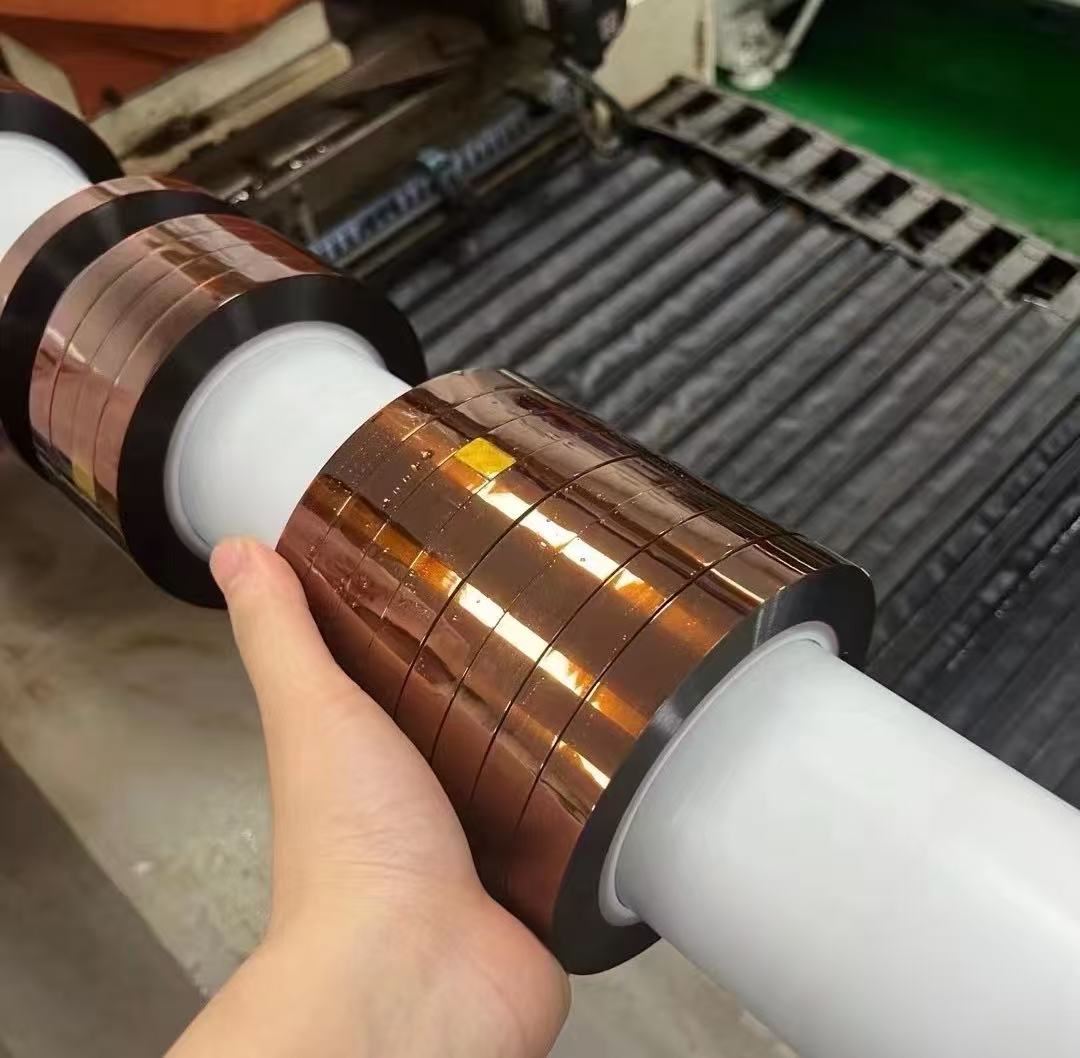

Kapton Tape Thickness: Why “Standard Size” Often Doesn’t Work in Production

When selecting Kapton tape, thickness is often treated as a minor detail. In reality, it directly affects adhesion, insulation performance, and process stability.

Many production issues—lifting, poor masking, or insufficient protection—can be traced back to using the wrong thickness rather than the wrong material.

What Happens When Thickness Is Not Matched to the Application

Thickness mismatches rarely show up immediately—but they create problems during real use:

• Thin tape tearing during removal
• Thick tape failing to conform to edges
• Insufficient insulation in high-voltage areas
• Masking gaps in complex PCB layouts

These issues often lead to rework or inconsistent product quality.

Common Kapton Tape Thickness Ranges

Kapton tape is typically available in a range of thicknesses depending on application needs:

• Thin (0.03mm – 0.05mm): flexible, precise masking
• Medium (0.06mm – 0.08mm): general-purpose use
• Thick (0.09mm+): higher insulation and protection

Each range behaves differently under heat and mechanical stress.

How to Choose the Right Thickness

For SMT Masking

Thinner tape is preferred for better conformity and precision.

For Electrical Insulation

Thicker tape provides better dielectric strength and durability.

For High-Temperature Processes

Thickness must balance heat resistance and stability under expansion.

For Complex Surfaces

Flexibility becomes more important than thickness.

Application Preferences Across Manufacturing Regions

Different regions prioritize different thickness characteristics:

• ✔ China & Vietnam: thinner tape for high-speed SMT
• ✔ Southeast Asia: balanced thickness for mixed applications
• ✔ Europe: thicker tape for reliability and compliance

Selection often reflects production priorities rather than just specifications.

Thin vs Thick Kapton Tape

Case: Solving Masking Issues by Adjusting Thickness

A PCB manufacturer faced repeated masking inconsistencies. Switching from a thicker tape to a thinner variant improved conformity and reduced defects.

• ✔ Better edge sealing
• ✔ Reduced lifting during reflow
• ✔ Improved consistency
