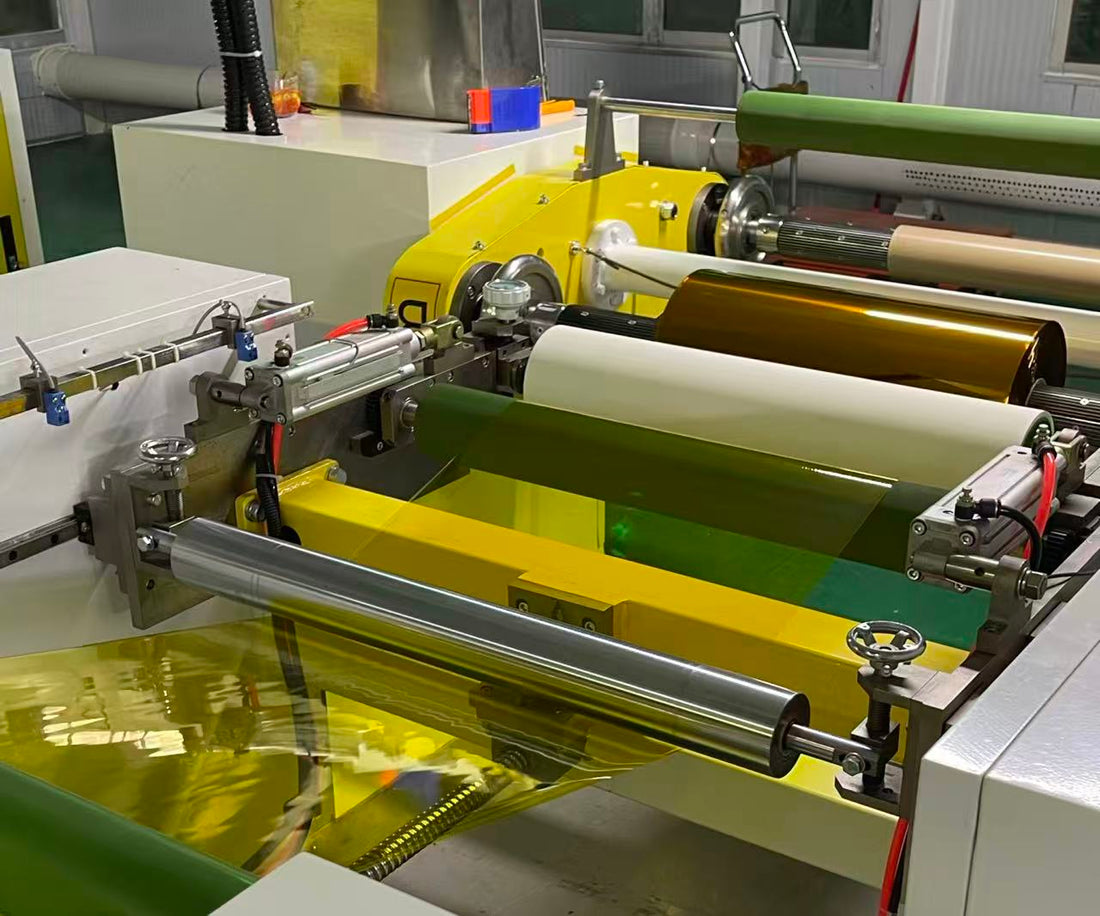

Precision Component Isolation: Where Kapton Polyimide Fits Inside Modern Electronics
As consumer devices grow thinner and high-frequency 5G/AI hardware generates unprecedented thermal densities, component isolation becomes critical. Standard electrical tapes degrade or melt, but ultra-thin Kapton polyimide tape (0.025mm – 0.05mm) delivers high dielectric breakdown strength (>6,500V/mil) and clean thermal resistance up to 260°C continuous across micro-components.
1. Device & Component Breakdown: Where Kapton Is Applied
Inside smartphones, laptops, medical telemetry, and automotive ECU modules, Kapton tape is engineered into micro-assemblies. Here is a breakdown of key hardware integrations:
📱 A. Smartphone & Tablet Battery PCM (Protection Circuit Module)
Lithium-ion pouch batteries feature a Protection Circuit Module (PCM) soldered to the battery flex tail. Wrapping the PCM in 0.03mm single-sided Kapton tape prevents short-circuiting against the aluminum phone chassis, maintaining electrical isolation under repeated flexing.
Key Spec: High Dielectric Strength (>5000V) + Minimal Volumetric Thickness💻 B. Flexible Printed Circuit (FPC) Stiffener & Grounding Shields
FPC tails connecting display digitizers, camera sensors, and motherboards require mechanical support during connector insertion. Laminating double-sided Kapton tape with stainless steel or FR4 stiffeners delivers rigid reinforcement while preserving high-temperature solderability.
Key Spec: High Shear Adhesion + Solder Reflow Resistance (260°C)🔥 C. BGA Chip Desoldering & Hot-Air Thermal Shielding
During SMT repair, technicians use hot-air rework stations at 350°C to replace Ball Grid Array (BGA) processors. Covering adjacent micro-capacitors, logic ICs, and plastic connectors with Kapton prevents accidental desoldering or melting from thermal blast.
Key Spec: Zero Residue Removal + High Thermal Reflection🖥️ D. OLED Display Backlight & Touch Panel Layer Isolation
Thin-film OLED panels incorporate precision die-cut Kapton rings around driver IC flex tails to shield sensitive touch circuits from static discharge (ESD) and mechanical abrasion against internal frame metal.
Key Spec: Precision Die-Cut Tolerance (±0.05mm) + Low Outgassing2. Component Engineering Parameters: Selection Matrix
Electronics engineers select Kapton tape configurations based on electrical clearance, physical constraint, and adhesive chemistry:
| Electronic Component Zone | Tape Structure | Dielectric Breakdown | Operating Temp Range |
|---|---|---|---|
| Li-ion Battery Pack PCM Wrapping | 0.03mm Ultra-thin Amber Polyimide + Silicone | >4,500 Volts | -40°C to +200°C |
| SMT Gold Finger Wave Masking | 0.05mm Standard Polyimide + Silicone | >6,500 Volts | -73°C to +260°C (300°C Peak) |
| ESD-Sensitive CMOS Sensor Masking | 0.05mm Anti-Static Coated Polyimide | >5,000 Volts | ESD: 106-109 Ω/sq |
| High-Frequency Transformer Coil | 0.06mm Triple-Layer Composite Polyimide | >8,500 Volts | -70°C to +220°C |
Need Precision Die-Cut Precision Parts for Automated Pickup?
Huilink provides die-cut Kapton shapes supplied on extended release paper for high-speed automated SMT placement.
Get Die-Cut Precision Tooling Quote on WhatsApp3. Quality Assurance: Testing Kapton Integrity Before Mass Assembly
Failure of an isolation tape inside a sealed smartphone or ECU module leads to product warranty claims. Hardware engineers must verify three quality standards during vendor qualification:
🧪 Component Validation Protocol
In sealed optical cameras or display modules, volatile adhesive gases fog lenses. Standard Kapton tape must achieve Total Mass Loss (TML) < 1.0% under vacuum heating.
Tapes must undergo 100 cycles from -40°C to +85°C at 85% Relative Humidity (85/85 test) without edge lifting, flagging, or adhesive degradation.
Tape backings must resist attack from no-clean solder fluxes, isopropyl alcohol, and ultrasonic wash solutions without swelling or dissolving.
FAQ
Q1: Can double-sided Kapton tape replace thermal paste for heatsinks?
Standard double-sided Kapton acts as an insulator (~0.12 W/m·K). For heatsink bonding, you must specify Thermally Conductive Kapton Tape infused with ceramic fillers to facilitate heat transfer while maintaining electrical isolation.
Q2: What is the typical thickness used for internal smartphone insulation?
Ultra-thin 0.03mm (1.2 mil total) Kapton tape is the industry standard for internal handheld electronics, conserving space inside tight chassis clearances.
Q3: How does Anti-Static (ESD) Kapton differ during SMT board handling?
Standard Kapton generates static charge (>5,000V) when unrolled or peeled off a PCB. Anti-static Kapton features a conductive surface layer that dissipates charges under 50V, protecting sensitive IC gates.
