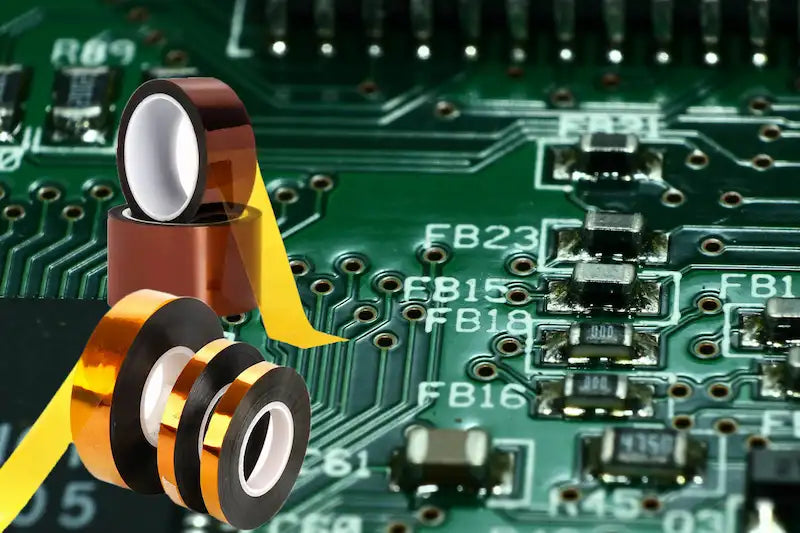

Thermally Conductive Polyimide Tape Guide: Heat Management in Electronics
Share
Thermally Conductive Polyimide Tape: A Practical Guide for Heat Management Applications
By Martin Chan | Senior Materials & Sourcing Lead at Hong Kong Huilink Trading Co., Limited
The Electronics Thermal Paradox: Electrical Insulation vs. Heat Dissipation
Standard amber Polyimide (Kapton) tape is famed for its 260°C heat resistance. However, standard polyimide film is a thermal insulator ($\approx 0.12\text{ W/m}\cdot\text{K}$). When mounted directly between power transistors (MOSFETs/IGBTs) and aluminum heat sinks, standard tape traps heat, driving up junction temperatures and risking component burnout.
To solve this engineering challenge, Thermally Conductive Polyimide Tape incorporates micro-ceramic fillers (such as Boron Nitride or Aluminum Oxide) dispersed evenly throughout the polyimide carrier film and functional silicone adhesive. The result is a high-dielectric tape that actively dissipates thermal energy across interface gaps.
1. Technical Comparison: Standard vs. Thermally Conductive Polyimide
| Property | Standard Amber PI Tape (Model 2550) | Thermally Conductive PI Tape |
|---|---|---|
| Thermal Conductivity | ~0.12 W/m·K (Thermal Insulator) | 0.37 – 0.50 W/m·K |
| Backing Fillers | None (Unfilled Polyimide Film) | Boron Nitride (BN) / Alumina Micro-particles |
| Dielectric Breakdown Strength | > 4.5 kV | > 5.0 kV – 6.0 kV |
| Adhesive Type | Standard Pressure-Sensitive Silicone | Thermally Enhanced Cross-Linked Silicone |
| Standard Total Thickness | 0.05mm (2 mil) / 0.07mm (2.8 mil) | 0.05mm (2 mil) precision uniform layer |
| Primary Function | Wave solder masking, PCB finger protection | Component-to-heatsink insulation & cooling |
2. Critical Industrial Heat Management Applications
A. TO-220 & TO-247 Power Component Isolation
Power MOSFETs mounted to extruded aluminum heatsinks require high breakdown electrical resistance to prevent short circuits. Thermally conductive polyimide tape replaces messy thermal grease and bulky ceramic washers, providing puncture-resistant mechanical support under screw-clamping torque.
B. EV Battery Module & Busbar Thermal Spreaders
In electric vehicle battery packs, prismatic and pouch cell busbars experience high current spikes. Wrapping inter-cell busbars with thermally conductive Kapton-type tape ensures rapid lateral heat spreading while protecting against electrical arcing between adjacent cell walls.
C. Flexible Printed Circuit (FPC) Heat Dissipation Strips
Ultra-thin electronic devices lack space for thick gap pads. Applying 0.05mm thermally conductive polyimide directly onto flexible circuit backings transfers heat directly into the device aluminum housing without adding height.
Request A4 Testing Sheets or Pre-Cut Washer Samples
We supply free sample rolls slit from 2mm to 500mm wide, as well as precision stamped TO-220 / TO-3P insulator shapes directly from our Dongguan facility.
📦 Request Free Sample Pack via WhatsApp3. Engineering Best Practices for Maximum Thermal Transfer
- Surface Degreasing: Remove residual oils and flux contaminants using isopropyl alcohol (IPA) before tape application. Air gaps caused by oil pockets significantly raise interface thermal resistance.
- Application Roller Pressure: Apply uniform pressure ($\ge 2.0\text{ kg/cm}^2$) during tape mounting to eliminate micro-voids in the silicone adhesive layer.
- Thickness Selection: Keep film thickness as thin as possible (0.05mm total) unless higher dielectric breakdown voltage limits (> 7.0 kV) are strictly mandated by UL standards.
