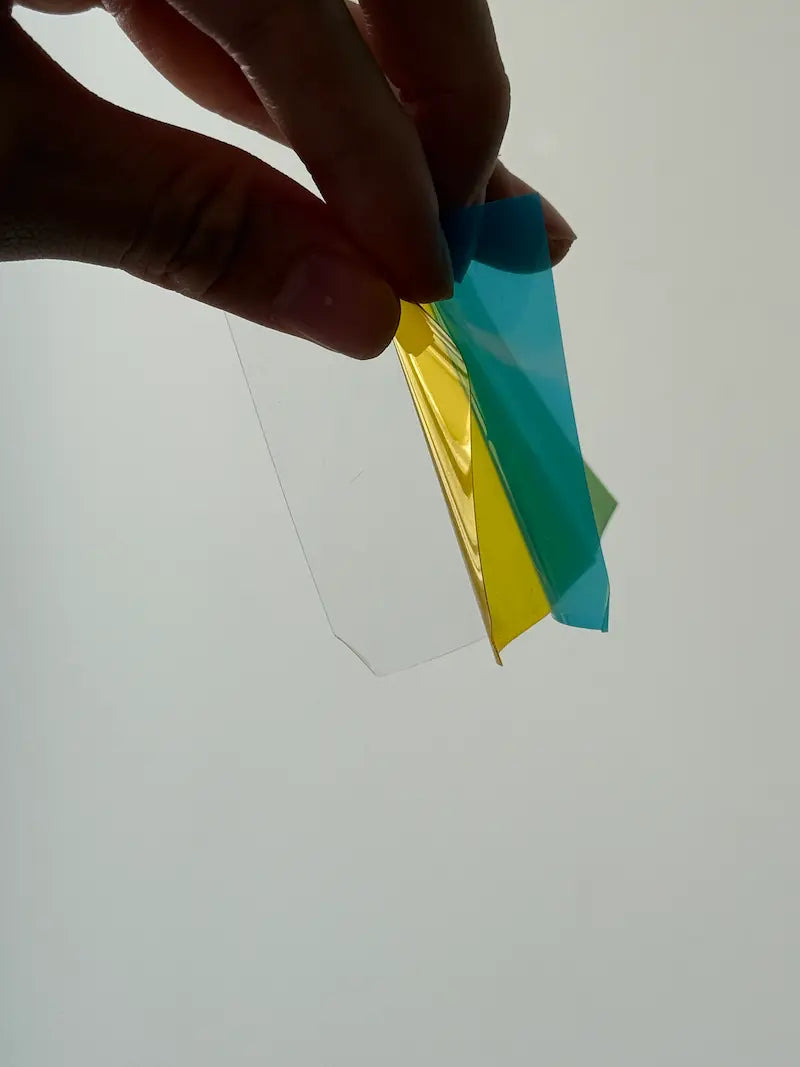

Double Sided Kapton Tape: Critical Use Cases & Common Failures
Double-sided Kapton tape (polyimide film coated with high-temperature silicone adhesive on both faces) provides dual-surface thermal insulation, dielectric strength, and dimensional stability. However, improper selection or environmental storage oversights frequently lead to costly assembly failures—such as liner locking, adhesion decay, or post-reflow residue.
Understanding exactly when double-sided polyimide tape outperforms standard single-sided variants—and identifying critical application boundary conditions—is vital for electronic packaging, battery module insulation, and PCB manufacturing.
Require Custom Die-Cut Sizes or Specific Hole Punching Specifications?
Talk directly with our factory engineering group regarding custom tolerances, special release liner configurations, and EXW/FOB pricing.
💬 Chat on WhatsApp (+86 13798812128)Primary Engineering Applications for Double-Sided Polyimide Tape
Standard single-sided masking tape protects surfaces during wave soldering or powder coating. Double-sided Kapton tape, by contrast, is specified when mechanical fixation must coincide with continuous thermal exposure up to 260°C.
- EV Battery Cell & Module Attachment: Securing thermal barriers, mica sheets, or flexible printed circuits (FPC) between battery cells where space limitations prohibit mechanical fasteners.
- PCB Assembly & Heatsink Mounting: Holding heat spreaders and small components firmly during high-temperature reflow cycles without dielectric breakdown (up to 4.5–5.5 kV breakdown voltage).
- Transformer & Motor Coil Interlayer Insulation: Providing symmetrical dielectric shielding between conductive windings under continuous operating temperatures above 180°C (Class H/N requirements).
Double-Sided Kapton Specification Comparison (Model 25100 Series)
Review the physical test parameters below to determine the correct adhesion force and release force balance for your automated or manual dispensing lines:
| Tape Grade | Total Thickness | Adhesion to Steel (gf/25mm) | Liner Release Force | Primary Production Purpose |
|---|---|---|---|---|
| Standard 25100 | 0.100 mm | 600 ± 50 | 8 – 10 g | General electrical insulation & light mounting |
| Enhanced Tack 25100 | 0.100 mm | 680 ± 50 | 5 – 8 g | Easy manual peeling with balanced structural tack |
| High-Tack Low-Release | 0.100 mm | 1100 ± 50 | 3 – 5 g | Automated high-speed die-cutting & heavy shear loads |
Root Causes of Production Problems with Double-Sided Kapton Tape
1. "Liner Lock" & Peel Difficulty After Extended Storage
Double-sided polyimide tape utilizes protective fluorosilicone or PET release liners on both sides. If the tape is stored past its recommended shelf life (or stored above 23°C and 65% Relative Humidity), release force agents slowly migrate across the adhesive interface. This causes two distinct issues:
- The release liner bonds permanently to the silicone adhesive (Liner Lock), causing tear damage during assembly.
- Migrated release agents lower the active surface tack of the tape, dropping holding power by 5% to 15%.
2. Shear Slippage Under Continuous Dynamic Stress
While silicone pressure-sensitive adhesive withstands 260°C continuous baking, its initial tack is viscous by nature. Applying heavy lateral forces before full surface wet-out can cause minor shear creep. Selecting a high-tack adhesive formulation (1100 gf/25mm+) prevents lateral slippage during thermal cycling.
Experiencing Peeling Issues or Low Adhesion on Current Batches?
Send us photographs of your substrate surface and current roll batch numbers. Our quality assurance team will analyze adhesive transfer and release forces for free.
⚠️ Send Photos for Instant Quality AnalysisStandard Operating Procedures to Prevent Failure
- Strict Storage Controls: Store rolls vertically in a climate-controlled environment maintained at 23°C ± 2°C and relative humidity below 65%. Avoid direct exposure to sunlight or thermal sources.
- Substrate Surface Preparation: Clean bonding zones with isopropyl alcohol (IPA) to eliminate oils, dust, or mold release agents before lamination.
- Adhesion-to-Release Ratio Matching: Match your automated pick-and-place equipment to low release forces (3–5g) if high-speed liner removal is required.
Frequently Asked Technical Questions
Q: What is the shelf life of double-sided polyimide tape?
A: Standard shelf life is 6 to 12 months under recommended preservation conditions. High-tack variants with customized liners maintain stable peel performance up to 12 months.
Q: Can double-sided Kapton tape be removed cleanly without silicone residue?
A: Yes. High-grade cross-linked silicone adhesives peel cleanly from stainless steel, aluminum, and ceramic substrates after exposure to 260°C for 30 minutes.
