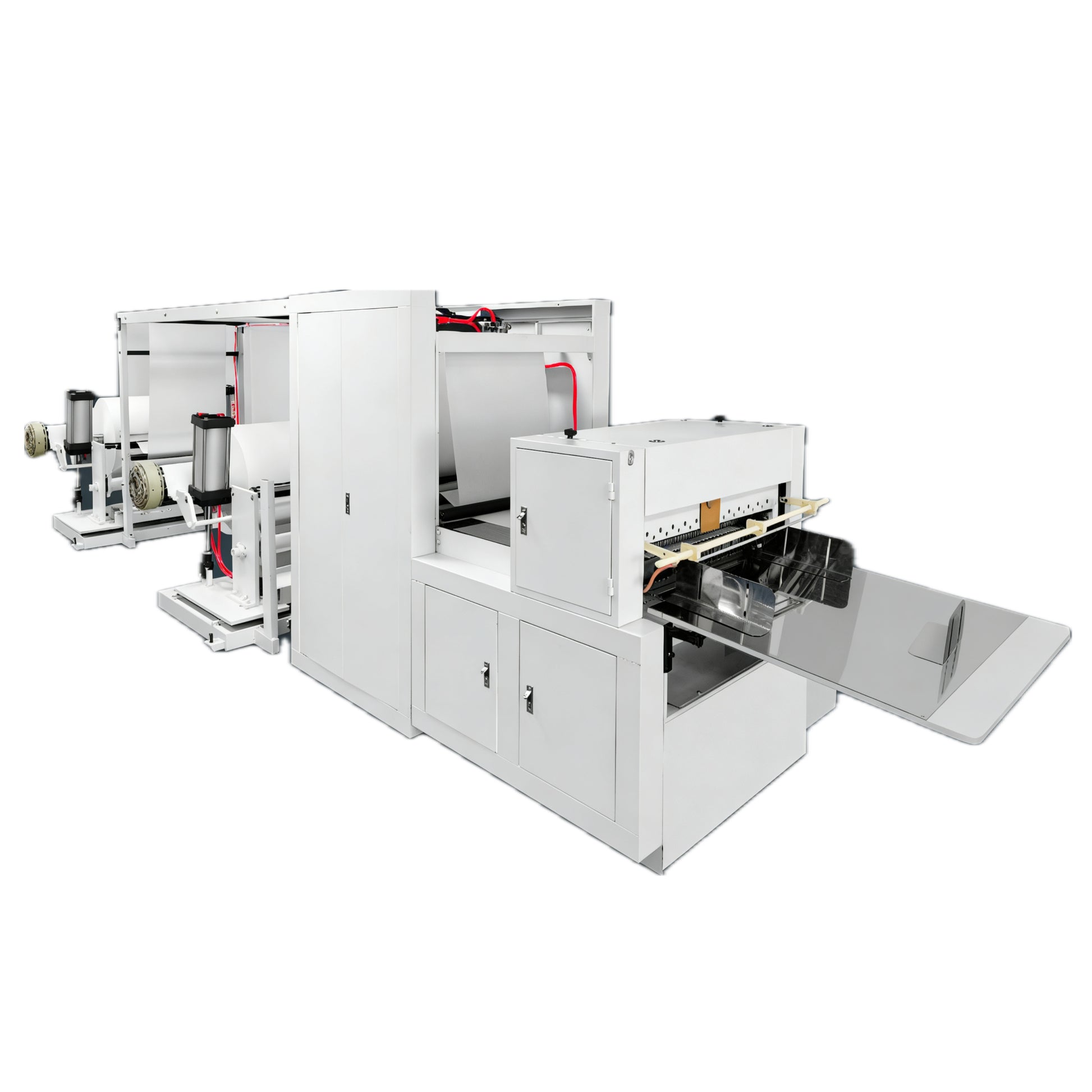

Multi-Layer Computerized Automatic Cross Cutter: The Efficiency Expert for Simultaneous Multi-Roll Cutting
Multi-Layer Computerized Automatic Cross Cutter: The Efficiency Expert for Simultaneous Multi-Roll Cutting
Parameters：
|
Model |
CLZA-B800 |
CLZA-B1000 |
CLZA-B1200 |
|
MAX.Parent Web Width |
750mm |
950mm |
1150mm |
|
Max.parent Web Diameter |
Φ1200mm |
Φ1200mm |
Φ1200mm |
|
收卷直径Max.Rewinding Diameter |
Φ600mm |
Φ600mm |
Φ600mm |
|
Max.Machine Speed |
10-60m/min |
10-60m/min |
10-60m/min |
|
Total Power |
5.5KW |
6KW |
7KW |
|
Machine Weight |
1000kg |
1300kg |
1500kg |
|
Overall Dimensions |
4000x1350x1700mm |
4000x1550x1700mm |
4000x1850x1700mm |
|
Cutting Length |
50-2000mm |
50-2000mm |
50-2000mm |
Scope Of Application
This machine is suitable for cutting multiple rolls of paper, film, laminated film, non-woven fabric, stickers, plastic printing and laminated rolls of material in longitudinal and horizontal directions.
Performance And Characteristics
With computer control, DC speed control, automatic length setting automatic counting, sound and light alarm, photoelectric tracking, and other functions. Electrostatic treatment is added at the material dischargeThe whole machine has compact structure, novel shape and high degree of automation, which is the necessary equipment for printing and cutting in to sheets of roll material.
MOQ: 1 Roll
Special models can be customized
OEM customization services
Provide comprehensive customized solutions
Free Sample
Free samples are available for your testing.
Factory Direct
Direct supply from Chinese factories
