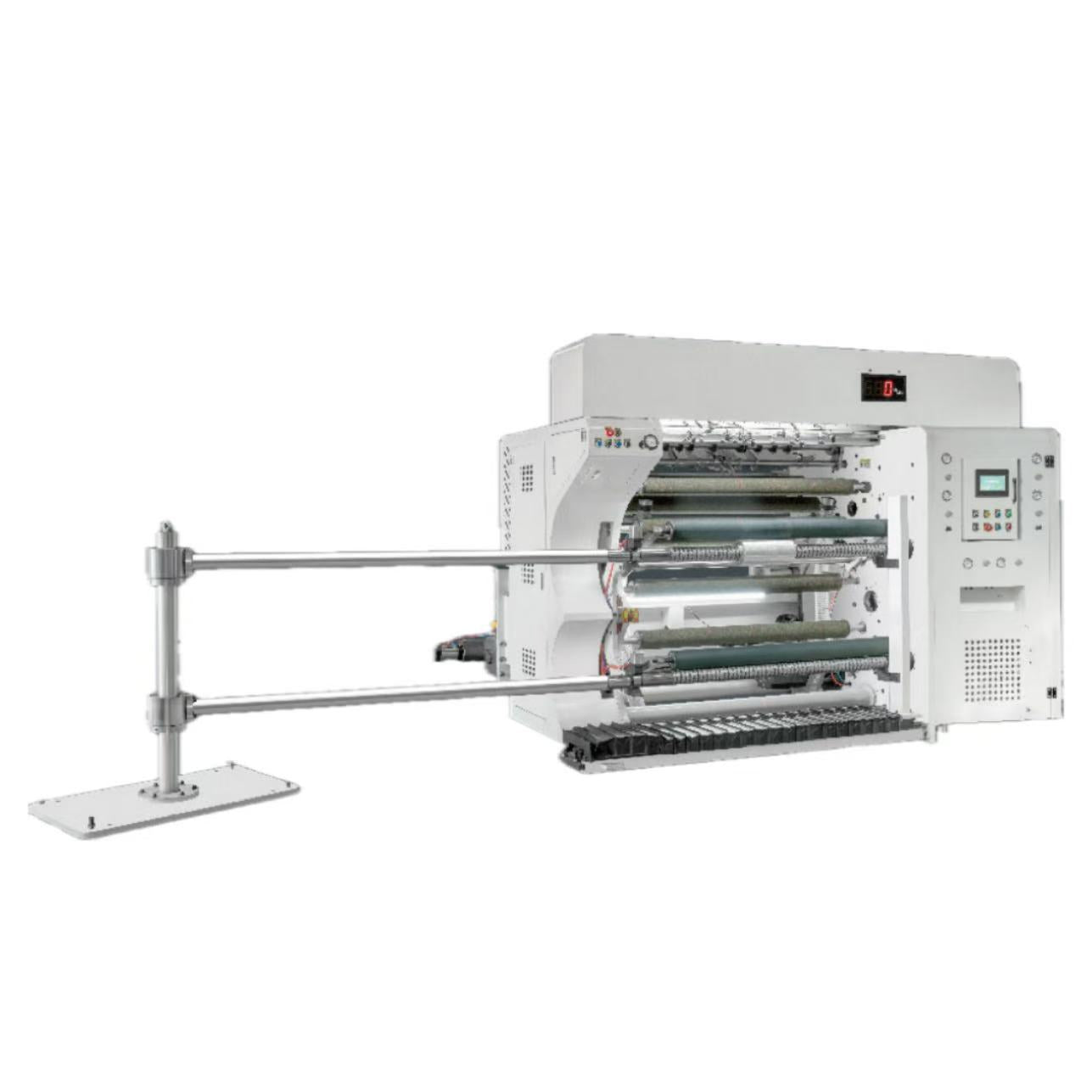

Mechano-Electro-Pneumatic Integrated Automatic High-Speed Slitter Rewinder: The Intelligent Hub for Web Converting

Main Technical Parameters

Description and Features

1、This type of slitting machine is suitable for slitting PE, PP, PET, PVC and other plastic films, laminated films, color printing films, rolls of paper, etc.. lt is the ideal machine for film,sheet secondary processing and color printing and packaging enterprises.

2、The whole machine is centrally controlled by PLC and operated by touch screen human-machine interface..

3、The unwinding adopts shaftless loading and unloading, pneumatic locking, manual adjustment of width and narrow, magnetic powder brake, convenient loading and unloading, high efficiency. PLC automatically calculates the roll diameter to achieve automatic tension control.

4、The winding shaft adopts the sliding differential shaft, and the electrical proportional valve controls the winding tension.

5、The upper and lower pressure rollers of winding shaft are pneumatically operated, and the pressure size is controlled by precision regulator.

6、Slitting adopts straight knife slitting device, with neat end face and side scrap wind feed. (Paper need to purchase round knife slitting device)

7、The system has a start buffer, parking anti-loose, meter counting and fixed length, fixed speed, roll diameter operation and other slitting functions.

8、The system has a perfect machine, electricity, gas integration design, and the use of complete safety measures.
