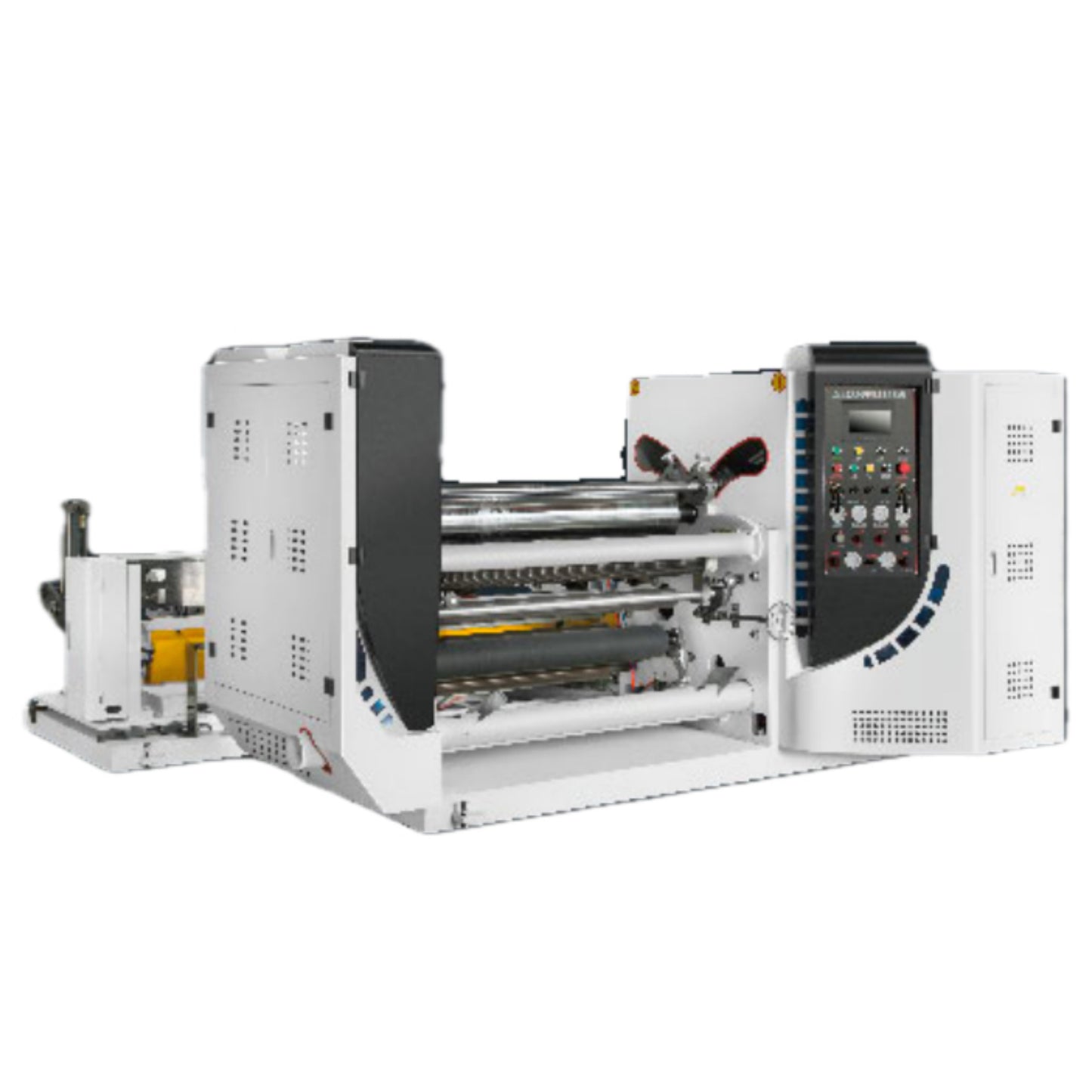

High-Speed Surface Slitter Rewinder: The Reliable Partner for Large-Diameter Material Processing

Main Technical Parameters：

Core Value

The High-Speed Surface Slitter Rewinder is specifically designed for efficient and precise slitting of large-diameter, wide-web materials. It utilizes unique surface winding technology, driving the rewinding shaft through friction drums, enabling flat, tight rewinding of large-diameter finished rolls. It is particularly suitable for batch processing of materials like paper and film. Its core value lies in solving common issues like wrinkling and telescoping during large-diameter rewinding, ensuring smooth subsequent processes .

Performance and characteristics

1. Unwinding automatic photoelectric correction, using shaft pneumatic feeding, magnetic powder brake or (pneumatic brake) automatic tension control.

2. The winding is driven by two vector motors and the main engine linkage control center is used for winding and surface contact, and the two-axis cross winding is performed, never biting.

3. The main drive is controlled by the inverter, driven by the variable frequency motor, and the acceleration and deceleration is stable and fast.

4. There are preset automatic meter counting, calculation of coil diameter, alarm shutdown and other functions.

5. Longitudinal cutting with a round knife, the cutting surface is neat, and the waste edge is automatically eliminated.

6. The whole machine is controlled by the automatic tension of the PLC touch screen man-machine interface.
