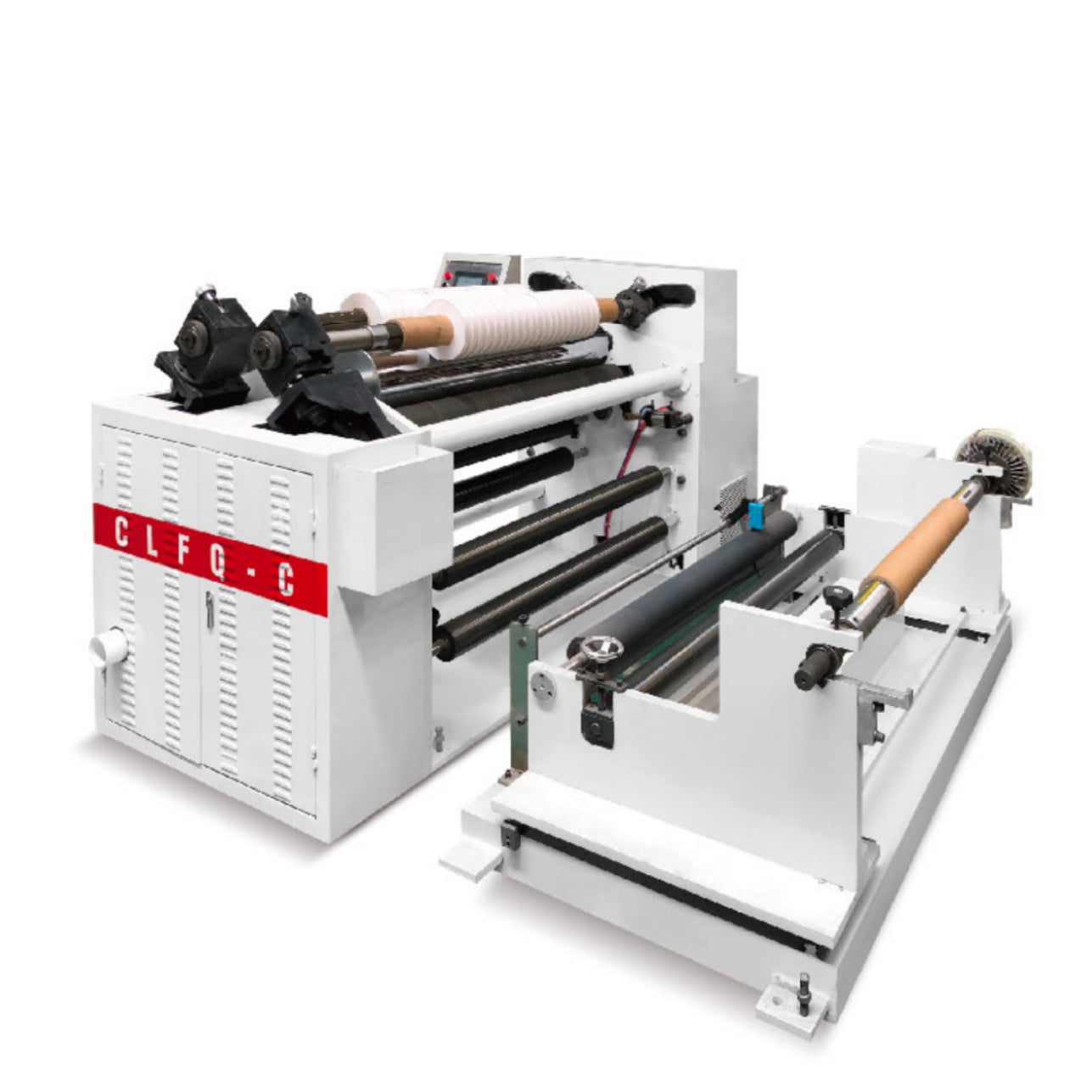

Surface Slitter Rewinder: The Stability Expert for Large-Diameter Material Winding

Main Technical Parameters

Core Value

The Surface Slitter Rewinder is specialized equipment for efficient slitting and rewinding of large-diameter, wide-web, heavy rolls. Its core characteristic is that the finished rolls are driven by friction drums, not through the center shaft. This unique winding method ensures even force distribution during winding, enabling the production of flat, tight rolls with diameters up to 800-1500mm and weights of several hundred kilograms. It is particularly suitable for large-scale production of materials like paper, film, and nonwovens.

Uses:

Surface winding slitting and rewinding machine is suitable for narrow strip rewinding such as aluminum foil, paper, insulating material, bronzing film, plastic film (BOPP, PET, PE, PVC).

Features:

1. Unwinding is equipped with photoelectric automatic correction device and magnetic powder brake automatic tension

2, equipped with automatic metering, automatic shutdown device

3, the host frequency control

4. The two magnetic powder clutches and the main engine linkage control center are wound up and used in contact with the surface, and the two-axis cross winding is performed, never biting.

5. Round knife / straight knife slitting, automatic blowing waste side device.
