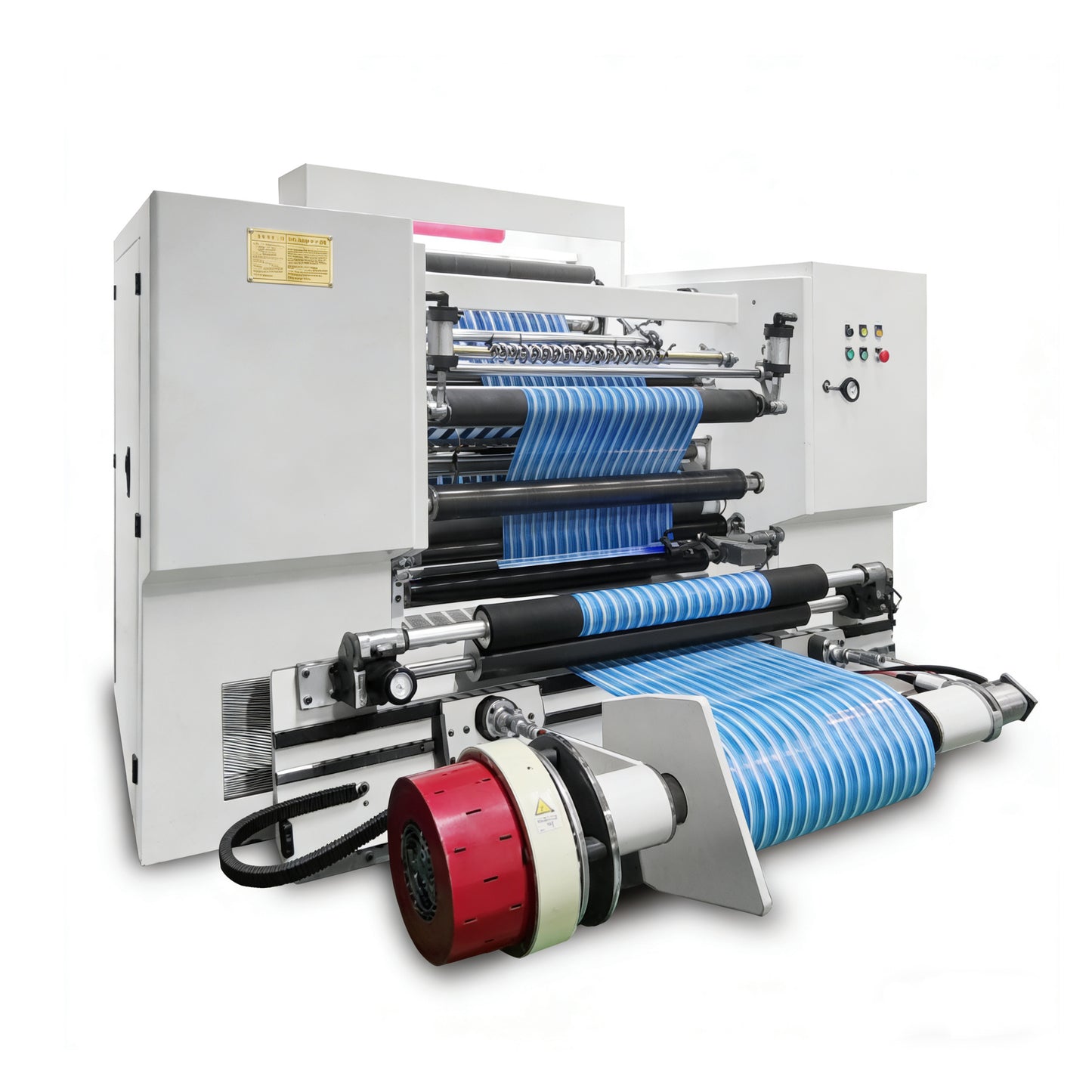

Automatic High-Speed Vertical Slitter: The Compact Space Efficiency Expert for Web Converting

Main Technical Parameters

Description And Characteristics

1.This machine is suitable for slitting of various reel materials such as PE, PR, PET, CPP, PVC, composite film.


2. The whole machine is controlled centrally by PLC touch screenStart buffer, stop anti-loose, meter length, fixed speed, roll diameter calculation and other functions.

3.The unwinding loading and unloading material adopts the gas-upshaft loading and unloading material, pneumatic locking, pneumatic lifting of the material roll, convenient loading and unloading, and high efficiency.

4.The unwinding adopts the start brake brake, and the automatic calculation of the coil diameter is realized by the PLC.

5,unwinding EPC correction device with CCD image sensor, can accu-rately control the end face accuracy..

6.The rewinding adopts the gas rising axis to realize the automatic tension increment by PLC operation.(friction shaft as option)

7. The pneumatic roller is used for the clutch of the take-up roller, and the pressure is controlled by a precision pressure regulating valve(the pressure roller adopts a flat push type).

8.The slitting adopts the razor knife slitting with neat finishing edge.Air blower for waste edge discharge. (paper material needs to pur-chase round blades device)
