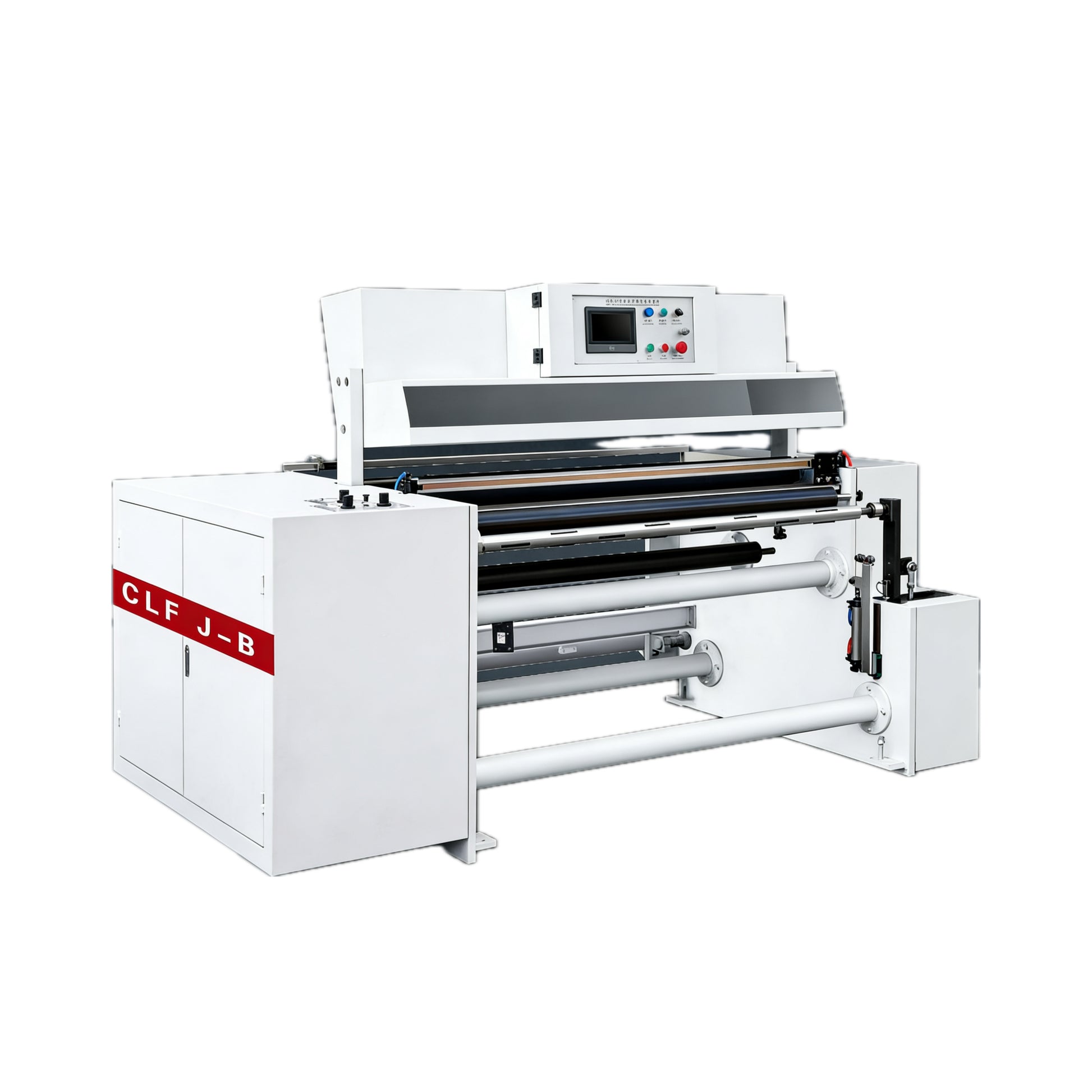

Automatic Guiding Rewinder | Edge Control System for Precision Slitting & Perfect Alignment
Automatic Guiding Rewinder | Edge Control System for Precision Slitting & Perfect Alignment
Why Precision Edge Control Matters
Real-Time Correction
Automatically adjusts material alignment during high-speed slitting operations.
Stable Rewinding
Ensures uniform roll tension and prevents material drift or edge damage.
High-Speed Compatibility
Designed for modern production lines requiring continuous precision control.
Industrial Grade Web Guiding Technology
The Automatic Guiding Rewinder is built for manufacturers who demand perfect alignment during slitting and rewinding operations. It continuously monitors material edges and automatically corrects deviations in real time.
This system significantly reduces material waste, improves roll consistency, and enhances overall production efficiency in film, tape, paper, nonwoven, and packaging industries.
It is widely used in converting lines where precision, stability, and speed are critical for output quality.
Typical Applications
Film Slitting Lines
Maintains edge alignment during high-speed film cutting processes.
Tape Converting
Ensures precise rewinding and consistent roll structure.
Paper & Packaging
Improves production stability for flexible packaging materials.
Technical Specifications
Built for Industrial Production Efficiency
We supply precision web guiding and rewinding systems for global manufacturers seeking higher output stability, reduced waste, and automated alignment control in production environments.
FAQ
What is the main function of this system?
It automatically corrects material edge position during slitting and rewinding to ensure perfect alignment.
Can it be used on existing production lines?
Yes, it can be integrated into most standard converting and slitting machines.
What materials are compatible?
Film, tape, paper, nonwoven, and other flexible roll materials.
Do you support OEM or customization?
Yes, customization options are available based on production requirements.
|
Model |
CLFJ-B1000 |
CLFJ-B1300 |
CLFJ-B1600 |
|
MAX.Parent Web Width |
1000mm |
1300mm |
1600mm |
|
Max.parent Web Diameter |
Φ800mm |
Φ800mm |
Φ800mm |
|
Max.Rewinding Diameter |
Φ300mm |
Φ300mm |
Φ300mm |
|
Max.Machine Speed |
10-150m/min |
10-150m/min |
10-150m/min |
|
Total Power |
3KW |
3KW |
3KW |
|
Machine Weight |
1000kg |
1200kg |
1500kg |
|
Overall Dimensions |
2600x2000x1600mm |
2600x2000x1600mm |
2600x2500x1600mm |
|
Fixed length accuracy |
±5mm |
±5mm |
±5mm |
MOQ: 1 Roll
Special models can be customized
OEM customization services
Provide comprehensive customized solutions
Free Sample
Free samples are available for your testing.
Factory Direct
Direct supply from Chinese factories
