What is Polyimide Tape & How Does It Compare to Electrical Tape?
Polyimide tape (also known as Kapton tape) is a high-performance adhesive tape made from polyimide film with silicone or acrylic adhesive. Unlike standard PVC electrical tape, it offers superior heat resistance, electrical insulation, and chemical stability, making it essential for demanding industrial and electronic applications.

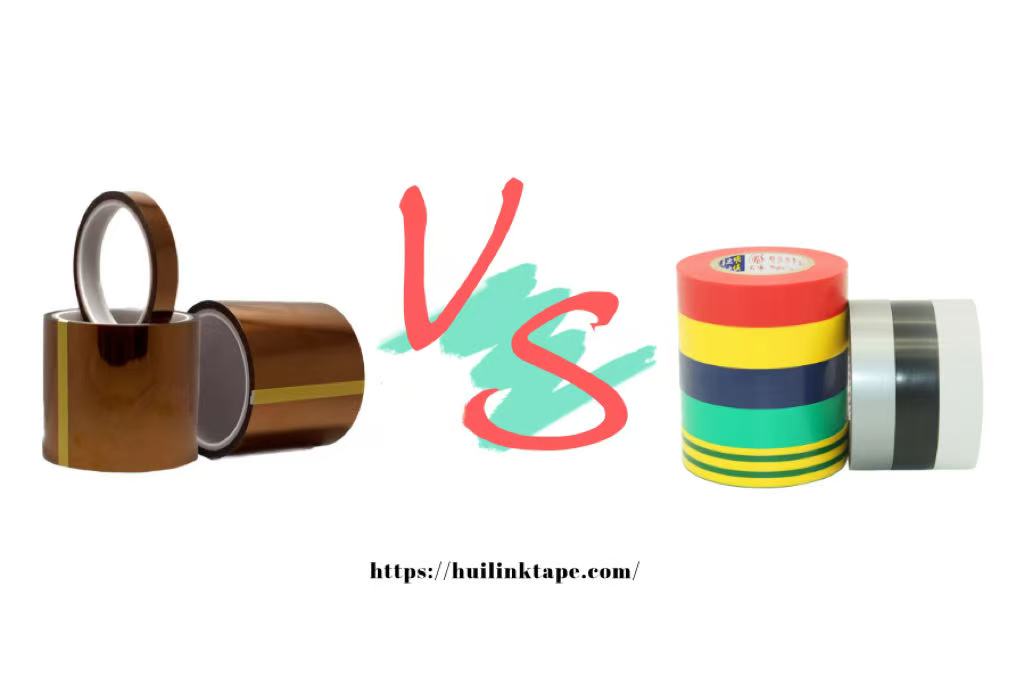

Key Differences: Polyimide Tape vs Electrical Tape
| Feature | Polyimide Tape | Electrical Tape (PVC) |
|---|---|---|
| Heat Resistance | Up to 260°C (500°F) | Typically 80-105°C (176-221°F) |
| Electrical Insulation | H-grade (up to 7,200V) | A/B-grade (600V max) |
| Chemical Resistance | Resists solvents, acids, oils | Degrades with oil/solvent exposure |
| Adhesive Type | Silicone (high-temp) or acrylic | Rubber-based (lower temp) |
| Thickness | Ultra-thin (0.025-0.15mm) | Thicker (0.13-0.2mm+) |
| Residue | Clean removal, no residue | May leave sticky residue |
| Primary Use | PCB masking, aerospace, batteries | Wire bundling, basic insulation |
Key Advantages of Polyimide Tape
1️⃣ Extreme Heat Resistance (Up to 260°C)
-
Withstands reflow soldering, wave soldering, and autoclave curing without melting4.
-
Unlike electrical tape, it won’t shrink or degrade at high temps.
2️⃣ Superior Electrical Insulation (H-Grade)
-
7,200V dielectric strength vs. PVC tape’s ~600V
-
Used in transformers, motors, and high-voltage PCBs.
3️⃣ Chemical & Moisture Resistance
-
Resists battery electrolytes, flux, and cleaning solvents
-
No moisture absorption, preventing corrosion in humid environments.
4️⃣ Precision & Clean Removal
-
Die-cuttable for custom shapes in automated assembly.
-
No residue after removal, even after high-temp exposure.
Top Applications of Polyimide Tape
🔌 Electronics Manufacturing
✔ PCB gold finger masking – Protects contacts during soldering
✔ Flex circuit reinforcement – Secures traces in foldable devices.
🚀 Aerospace & Automotive
✔ Wire harness insulation – Resists engine heat and vibration.
✔ Battery terminal protection – Prevents short circuits in EVs
⚡ Energy & Industrial
✔ Transformer coil wrapping – H-grade insulation for power systems.
✔ Powder coating masking – Withstands 260°C curing temps.
