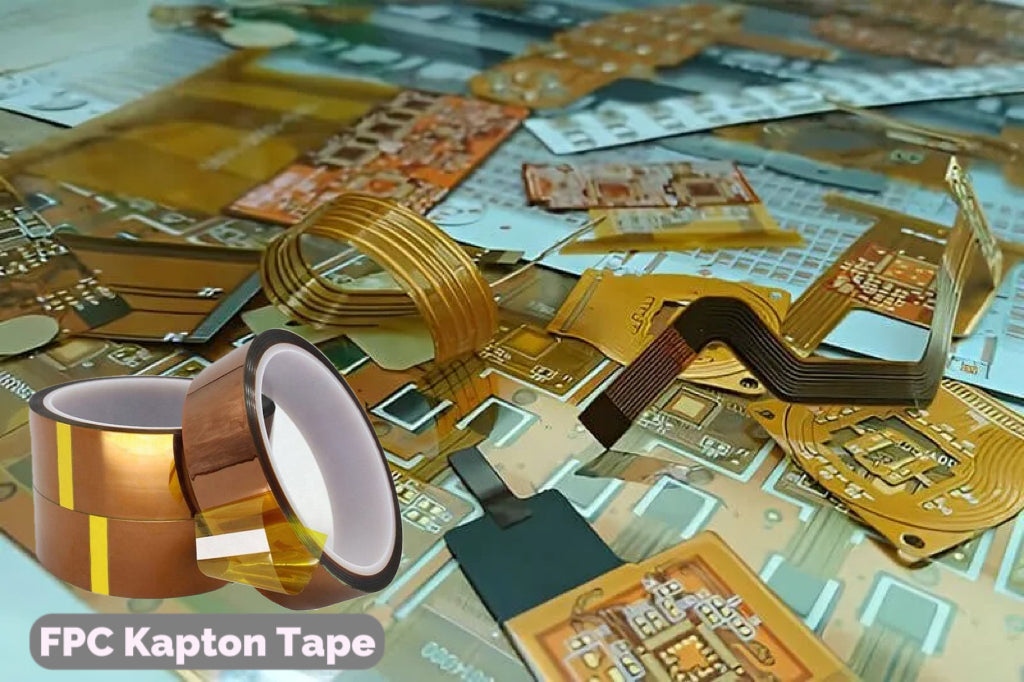

Polyimide Tape in FPC Production: Chemical Resistance Performance
Share
Why Chemical Resistance Matters in FPC Manufacturing?
Polyimide tape (commonly known as Kapton tape) is a critical material in Flexible Printed Circuit (FPC) production, prized for its exceptional chemical resistance, thermal stability, and electrical insulation.
In FPC manufacturing, circuits are exposed to harsh chemicals, including:
✔ Flux & solder pastes (acidic/alkaline formulations)
✔ Cleaning solvents (IPA, acetone, alkaline KMnO₄ solutions)
✔ Battery electrolytes (LiPF₆-based electrolytes in Li-ion battery FPCs)
Without proper chemical protection, FPCs can suffer from:
❌ Delamination – Adhesive layers degrade, causing circuit failure
❌ Copper corrosion – Leads to signal loss or short circuits
❌ Reduced lifespan – Premature failure in automotive/industrial applications
Key Chemicals Threatening FPC Reliability & How Polyimide Tape Resists Them
1️⃣ Alkaline Desmear Solutions (KMnO₄/NaOH)
Used in Rigid-Flex PCB manufacturing to remove resin smear.
Attacks standard polyimide films, causing hydrolysis & thickness reduction.
Solution: Epoxy-coated polyimide tape provides an extra protective layer against alkali attack.
2️⃣ Acidic Flux Residues
Common in reflow/wave soldering.
Can corrode copper traces & solder joints.
Solution: Silicone-modified polyimide tape resists flux degradation better than acrylic adhesives.
3️⃣ Lithium-Ion Battery Electrolytes
LiPF₆-based electrolytes degrade standard adhesives.
Solution: Fluoropolymer-coated polyimide tape offers superior resistance in battery FPC applications.
4️⃣ Cleaning Solvents (IPA, Acetone)
Weakens acrylic-based adhesives over time.
Solution: Silicone adhesives in polyimide tape maintain integrity even after repeated solvent exposure.
How Polyimide Tape Enhances FPC Chemical Resistance?
1️⃣ Material Composition
Polyimide film base – Naturally resistant to most organic solvents, acids, and alkalis.
Silicone adhesive – Superior chemical stability vs. acrylic adhesives.
2️⃣ Surface Treatments & Coatings
Epoxy coatings – Improve alkali resistance for rigid-flex PCBs.
Fluoropolymer layers – Protect against battery electrolytes.
3️⃣ Performance Comparison vs. Alternatives
| Property | Polyimide Tape | PET Tape | PTFE Tape |
|---|---|---|---|
| Chemical Resistance | Excellent (flux, acids, solvents) | Good (limited solvent resistance) | Excellent (but poor adhesion) |
| Heat Resistance | 260°C+ | 120°C max | 260°C+ |
| Adhesion Strength | High (6.5N/25mm) | Medium | Low |
Top Applications of Polyimide Tape in FPC Production
🔌 SMT Process Masking
Protects FPC gold fingers during soldering, resisting flux and cleaning solvents.
⚡ Li-Ion Battery FPCs
Insulates battery terminals, preventing electrolyte-induced corrosion.
🚀 Aerospace & Automotive FPCs
Withstands fuel, oil, and hydraulic fluid exposure in harsh environments.
