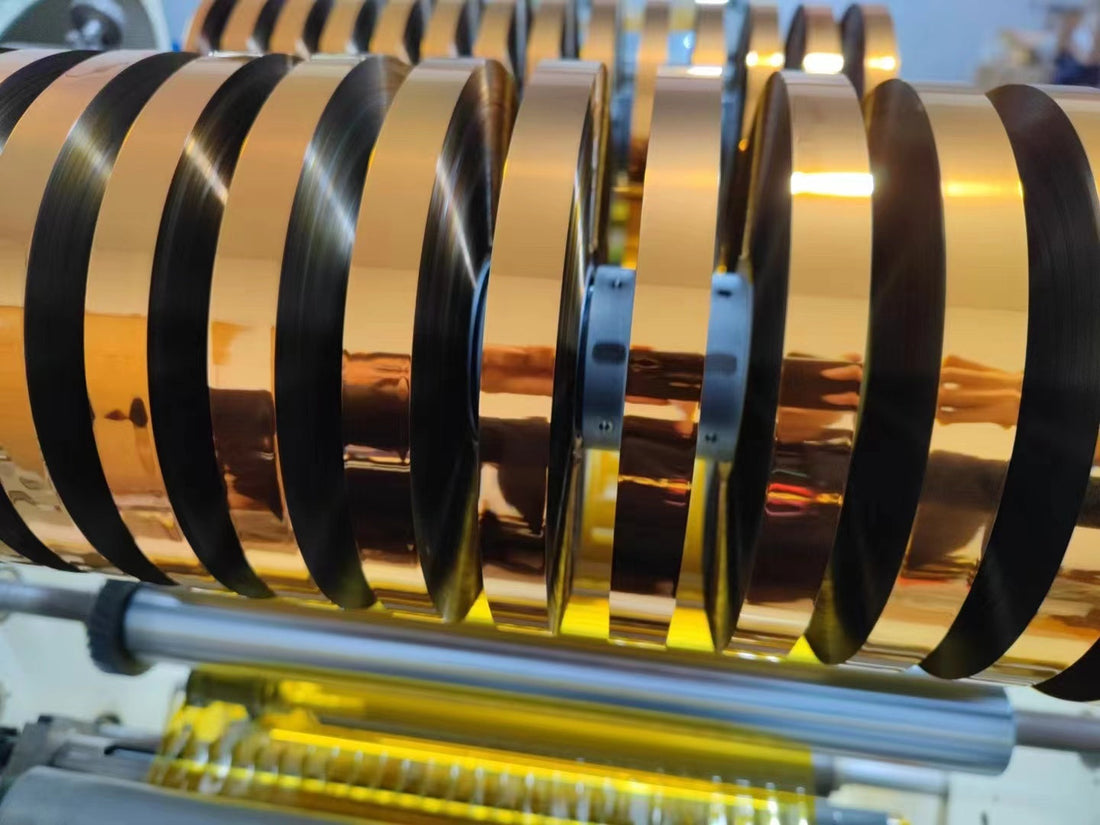

High Heat Kapton Polyimide Tape for PCB & SMT Masking

Why Must You Choose Kapton Polyimide Tape for PCB Processing?

Kapton polyimide tape isn't ordinary tape. It uses polyimide film as the base material, coated with high-performance silicone pressure-sensitive adhesive, offering temperature resistance and electrical insulation properties that common tapes cannot match.

Differences from ordinary tapes:

• Extreme temperature resistance: Continuously withstands temperatures from -269°C to +260°C, with peak resistance up to 300°C-400°C

• Exceptional electrical insulation: Dielectric strength up to 5000-7000 volts/mil, complying with Class H insulation standards

• Excellent chemical resistance: Resists acids, alkalis, and solvents, remaining stable in harsh chemical environments

• Non-residue design: Can be cleanly peeled after high-temperature use without contaminating precision components

Key Applications of Kapton Tape in PCB Processing

1. Wave Soldering Masking Protection

During wave soldering, the tape is used to protect gold fingers from solder contamination. This is one of the most classic applications of Kapton tape, effectively preventing gold fingers from being covered by solder and ensuring good contact performance of connectors.

2. SMT Reflow Soldering Protection

The reflow soldering process in surface mount technology involves extremely high temperatures. Kapton tape can withstand reflow soldering temperatures of 240-260°C, providing reliable protection for sensitive components.

3. Flexible Circuit Board Manufacturing

In FPC manufacturing, Kapton tape is used to secure flexible circuit boards onto fixtures, facilitating a series of processes such as printing, component placement, and testing.

4. Lithium Battery Tab Fixation

With the miniaturization of electronic devices, Kapton tape is used in lithium battery manufacturing to fix positive and negative tabs, providing safe and reliable insulation protection.

How to Correctly Select Kapton Tape for PCB Processing

Thickness Selection Guide

Choose the appropriate thickness based on application scenario:

• 0.025-0.05mm: Ultra-high flexibility, suitable for precision micro components and complex surfaces

• 0.06-0.08mm: Universal thickness, balancing protection and conformability, suitable for most PCB applications

• 0.1mm and above: Maximum mechanical protection, suitable for applications with sharp edges

Key Parameter Considerations

When selecting, pay attention to:

• Temperature rating: Ensure it meets your process's peak temperature requirements

• Dielectric strength: Select appropriate insulation grade based on circuit operating voltage

• Certification standards: Confirm products have UL certification and RoHS compliance

• Adhesive type: Silicone pressure-sensitive adhesive provides the best high-temperature performance

Professional Application Techniques: Maximizing Kapton Tape Effectiveness

Surface Pretreatment

1. Thorough cleaning: Use isopropyl alcohol to remove all oil, dust, and contaminants

2. Complete drying: Ensure no moisture residue on the surface

3. Check flatness: Rough surfaces may require thicker tape

Application Techniques

1. Precise cutting: Pre-cut tape size according to the protection area

2. Start from one end: Gradually extend to the other end to avoid air bubbles

3. Even pressure application: Use a plastic squeegee to ensure full contact

4. Edge compaction: Especially reinforce edge pressure to prevent solution leakage

Removal Guide

1. Wait for cooling: Always wait for the PCB to cool completely before peeling

2. Smooth peeling: Peel off slowly and steadily at a 180-degree angle

3. Residue handling: If necessary, use specialized solvent for cleaning

Common Problems and Solutions

Problem 1: Tape edge lifting at high temperatures

• Cause: Insufficient adhesion or unclean surface

• Solution: Ensure surface is thoroughly cleaned, select model with higher adhesion

Problem 2: Incomplete protection, solution leakage

• Cause: Tape size too small or poor adhesion

• Solution: Leave sufficient margin when cutting, reinforce edge compaction after application

Problem 3: Residue after removal

• Cause: Temperature too high or contact time too long

• Solution: Control exposure time, select tape model suitable for the temperature
