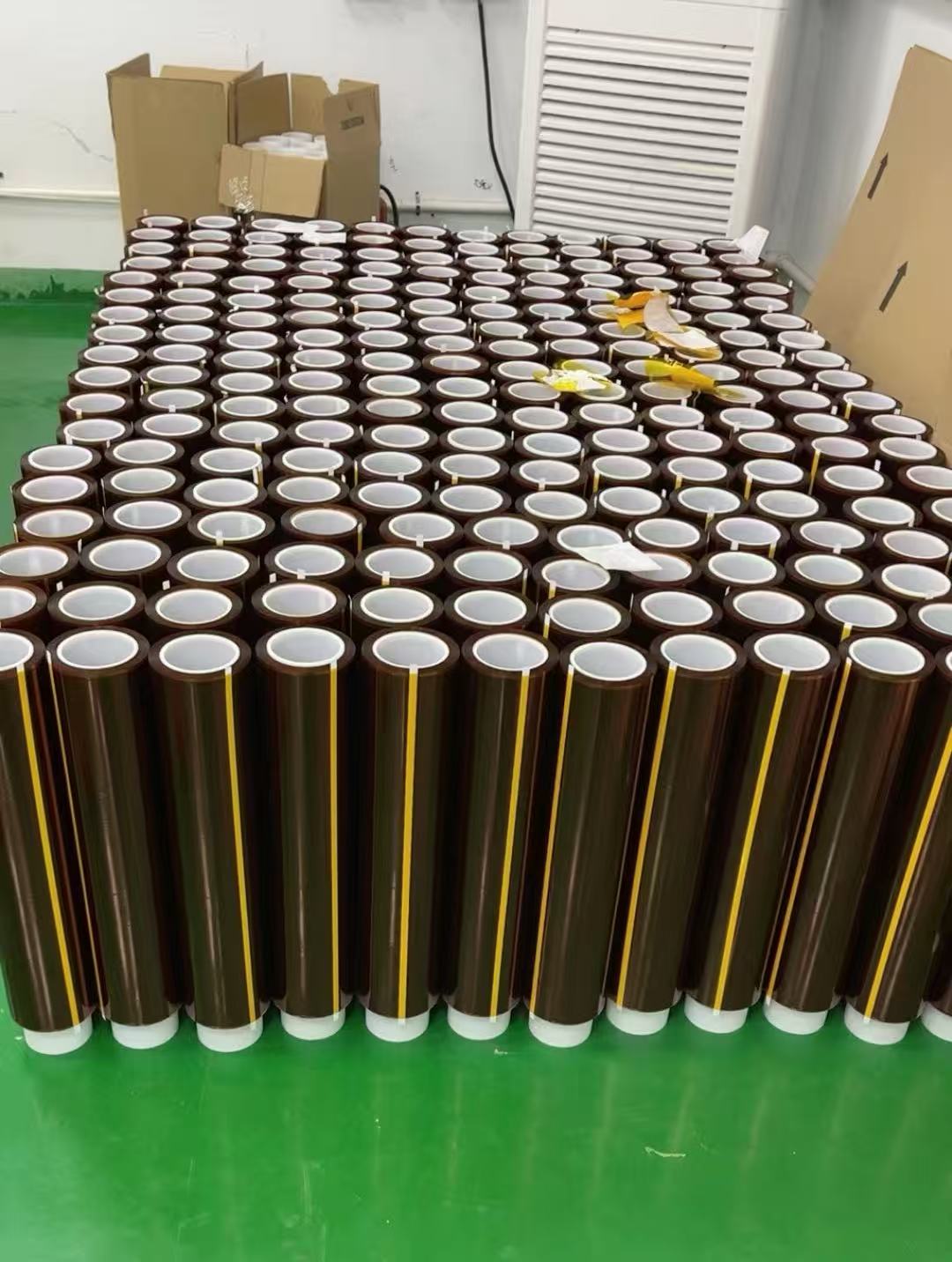

Is Kapton Tape Conductive or Insulating? Electrical & Thermal Analysis for Engineers
Share
⚡ Quick TL;DR for Design Engineers
- Electrical Isolation: Standard amber Kapton (Polyimide) tape is an electrical insulator, withholding over 6,500 Volts per mil (mil = 0.001 inch) before dielectric breakdown occurs.
- Thermal Behavior: Standard Kapton is a thermal insulator (thermal conductivity ≈ 0.12 – 0.16 W/m·K). However, specialized alumina/ceramic filled variants are modified for thermal transfer.
- Static ESD Risks: Standard film peeling generates >5,000V triboelectric charge. Sensitive SMT/PCB assembly lines require Anti-Static (ESD) Kapton with coated conductive layers (106 – 109 Ω/sq).
1. The Core Question: Is Kapton Tape Conductive or Insulating?
A common misstep during initial hardware prototyping—especially in EV battery packaging, transformer wrapping, and high-density SMT PCB rework—is misinterpreting the dual nature of electrical vs. thermal conductivity in polyimide films.
In its native form, Kapton tape is a high-performance electrical insulator. The organic polyimide polymer backbone backbone contains tightly bound electrons, preventing electron flow even under extreme thermal stress up to 260°C (continuous) or 400°C (short exposure).
| Polyimide Tape Variant | Electrical Conductivity | Dielectric Breakdown Strength | Thermal Conductivity | Primary Engineering Use Case |
|---|---|---|---|---|
| Standard Amber Kapton (0.05mm) | Insulator (>1012 Ω·cm) | 6,500 - 7,500 V/mil | ~0.12 W/m·K | PCB wave soldering, motor slot insulation, wire harness |
| Anti-Static (ESD) Polyimide Tape | Dissipative (106-109 Ω/sq) | >5,000 V/mil | ~0.12 W/m·K | Static-sensitive CMOS/BGA masking & zero-residue peeling |
| Thermally Conductive Kapton | Insulator (>1011 Ω·cm) | 4,000 - 6,000 V/mil | 0.37 - 0.45 W/m·K | Power transistor mounting, heatsink interface, battery thermal pads |
| Aluminum / Copper Laminated Kapton | Fully Conductive (Metal side) | 0 V (Metal side) | 100+ W/m·K | EMI/RFI shielding gaskets, grounding straps |
2. Dielectric Performance & Electrical Breakdown Data
Engineers often evaluate Kapton tape when seeking thin dielectric isolation that won't degrade under continuous elevated temperatures. According to ASTM D149 dielectric testing standards, standard 1-mil (0.025mm) and 2-mil (0.05mm) polyimide films demonstrate astounding voltage holding capabilities.
🔬 Huilink QA Lab Measurement (0.05mm Polyimide Tape)
• Dielectric Breakdown Voltage: >7,000 Volts (DC)
• Adhesive Layer: High-purity pressure-sensitive silicone (0.015mm)
• Continuous Thermal Threshold: -73°C (-99°F) to +260°C (+500°F)
• Short Peak Excursion: Up to 300°C during wave solder contact (10-15 seconds)
Because the silicone adhesive layer itself is electrically non-conductive, the tape maintains high volume resistivity (>1012 Ω·cm) even when baked repeatedly through SMT reflow cycles. This prevents current leakage between neighboring PCB traces spaced less than 0.5mm apart.
3. The Dangerous ESD Static Trap in Electronics Manufacturing
While standard Kapton tape is an excellent insulator, its high surface resistance creates a severe operational risk on ESD-sensitive production floors: Triboelectric Static Generation.
When an operator rapidly unrolls standard polyimide tape from its plastic core, or peels it off a freshly soldered PCB assembly, triboelectric charging can generate static discharges exceeding 5,000 Volts to 10,000 Volts. This instant spark can destroy sensitive MOSFET gates, IC microcontrollers, or RF components without leaving visible physical damage.
If you are working on class-0 ESD components (smartphones, AI accelerators, aerospace avionics), do not use standard amber Kapton. Instead, specify ESD Anti-Static Polyimide Tape featuring a nano-conductive back coating that limits triboelectric charge to under 50 Volts during rapid removal.
Need Custom Die-Cut Anti-Static Kapton Parts?
Huilink supplies custom roll widths (3mm to 500mm) and precision die-cut shapes for automated SMT lines.
📲 Get OEM Factory Direct Quote on WhatsApp4. Thermal Conductivity vs. Thermal Resistance: A Critical Difference
Another area of engineer confusion centers on heat transfer. Is Kapton thermally conductive?
Standard Polyimide film has a low thermal conductivity rating of roughly 0.12 W/m·K. This makes it an effective thermal insulator compared to metals like Aluminum (237 W/m·K) or Copper (401 W/m·K).
However, because standard Kapton tape can be manufactured extremely thin (e.g., 0.025mm or 0.05mm total thickness), its overall thermal resistance (R-value) remains minimal. Heat can easily pass through the ultra-thin film via thermal conduction despite the material's low bulk conductivity value.
For applications demanding active thermal dissipation (such as mounting power transistors or battery cell cooling jackets):
- Standard Kapton Tape: Used purely for electrical isolation where minor thermal drop is acceptable.
- Thermally Conductive Polyimide (Ceramic Filled): Doped with ceramic micro-fillers to raise conductivity to 0.37 – 0.50 W/m·K without compromising electrical resistance.
5. Engineering Selection Guide for Industrial Applications
A. SMT & PCB Wave Solder Masking
Requires high heat insulation and zero residue. Huilink 0.05mm Amber Polyimide Tape withstands 260°C continuous solder baths, protecting gold fingers and edge connectors without leaving gummy silicone residue.
B. EV Battery Pack & Lithium-Ion Cell Wrapping
Used between battery pouch cells or 18650/21700 cylindrical cell arrays to prevent cell-to-cell short-circuit arcs while tolerating thermal runaways and electrolyte exposure.
C. High-Frequency Transformer & Motor Winding Insulation
Class H (180°C) and Class C (220°C+) electrical insulation for transformer coils, relay switches, and magnetic wires where space is tight and dielectric strength must stay uncompromising.
Frequently Asked Questions (FAQ)
Q1: Will Kapton tape melt under direct soldering iron contact?
Polyimide film does not melt or drip like standard PVC or polyester tapes. It retains structural integrity up to 400°C for short periods. However, prolonged direct contact with a 380°C iron tip may char or discolor the silicone adhesive backing.
Q2: What is the difference between Kapton tape with Silicone vs. Acrylic adhesive?
Silicone adhesive provides the highest thermal endurance (-73°C to 260°C) and clean removal after high-heat processing. Acrylic adhesive offers higher initial adhesion bond and lower outgassing, but is limited to lower operating temperatures (155°C max).
Q3: How do I test if my Kapton tape roll is authentic and non-conductive?
You can use a digital megohmmeter (hi-pot tester) set to 1,000V DC across a single layer of tape. A quality roll will read infinitely high resistance (>100 MΩ).
